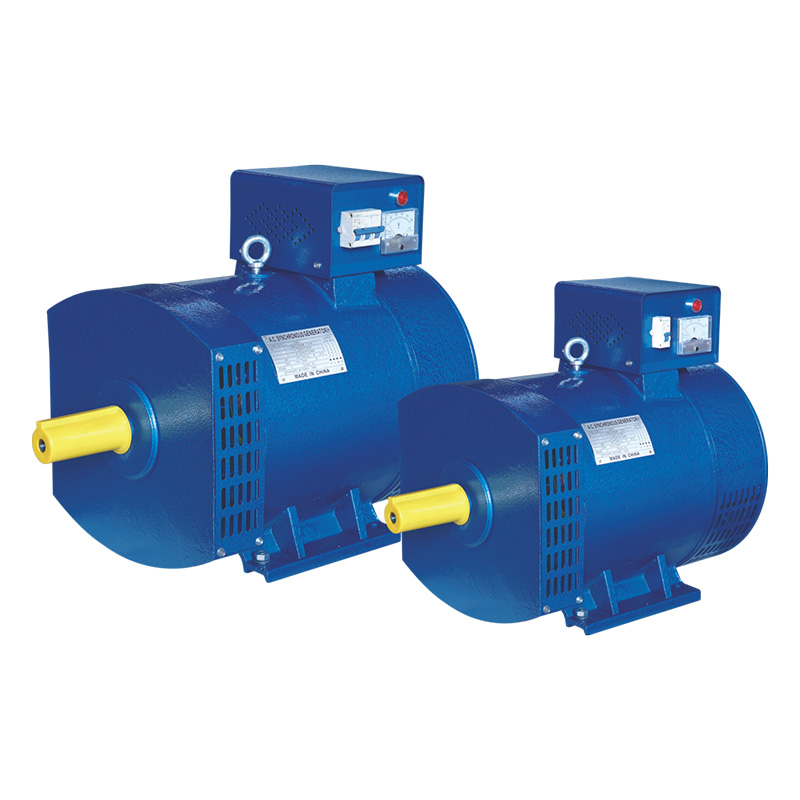

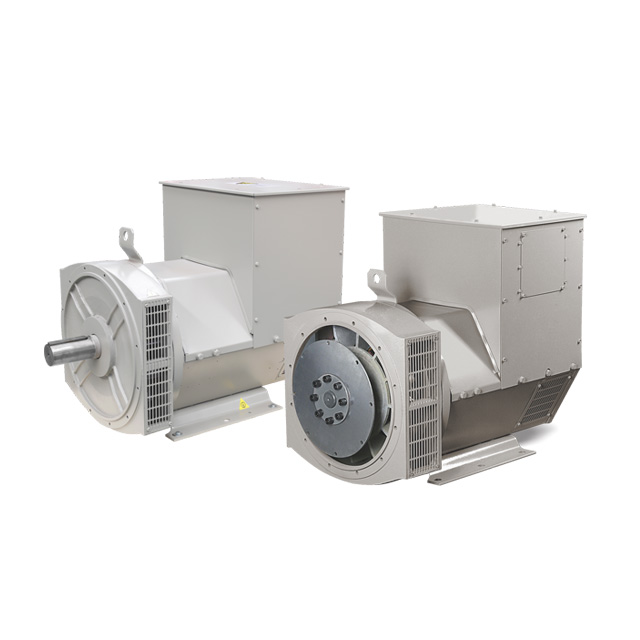

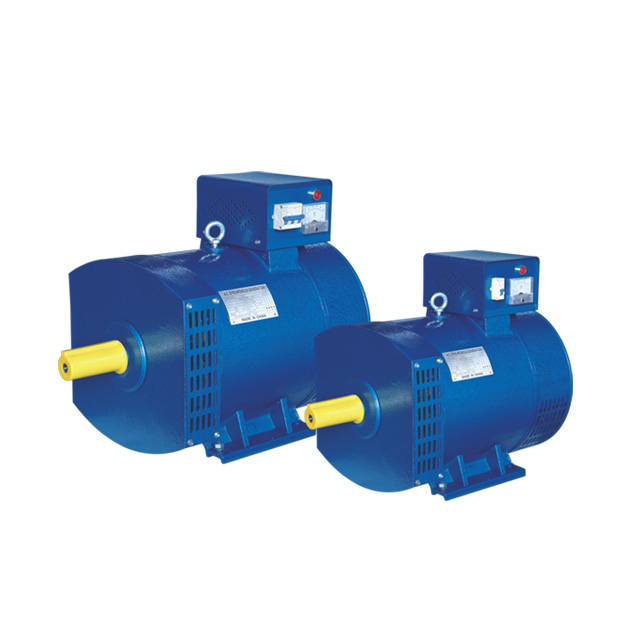

Brush&Brushless Alternator

Minsun is a hightech enterpries which integrateds the research, development, assembly , production, sales and service of diesel generator set and alternators.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Model	Output (kW)		Voltage(V)	Current (A)	Power factor	Speed	Pole number	Dimensions (cm)	Weight(kg)
Model	KVA	kW	Voltage(V)	Current (A)	(cos)	(r.p.m)	Pole number	Dimensions (cm)	Weight(kg)
ST-3	3	3	230	13	1.0	1500/1800	4	512942	50
ST-5	5	5	230	21.7	1.0	1500/1800	4	61.34.5*48.5	80
ST-7.5	7.5	7.5	230	32.6	1.0	1500/1800	4	61.34.5*48.5	80
ST-10	10	10	230	43.5	1.0	1500/1800	4	654053	95
ST-12	12	12	230	52.2	1.0	1500/1800	4	654053	100
ST-15	15	15	230	65.2	1.0	1500/1800	4	70.542.558	125
ST-20	20	20	230	87	1.0	1500/1800	4	70.542.558	135
ST-24	24	24	230	104.3	1.0	1500/1800	4	70.542.558	145
Model	Output (kW)		Voltage(V)	Current (A)	Power factor	Speed	Pole number	Dimensions (cm)	Weight(kg)
Model	KVA	kW	Voltage(V)	Current (A)	(cos)	(r.p.m)	Pole number	Dimensions (cm)	Weight(kg)
STC-3	3.8	3	400	5.4	0.8	1500/1800	4	512942	70
STC-5	6.3	5	400	9	0.8	1500/1800	4	61.34.5*48.5	120
STC-7.5	9.4	7.5	400	13.5	0.8	1500/1800	4	61.34.5*48.5	130
STC-10	12.5	10	400	18.1	0.8	1500/1800	4	654053	140
STC-12	15	12	400	21.7	0.8	1500/1800	4	654053	155
STC-15	18.8	15	400	27.1	0.8	1500/1800	4	70.542.558	192
STC-20	25	20	400	36.1	0.8	1500/1800	4	70.542.558	202
STC-24	30	24	400	43.3	0.8	1500/1800	4	70.542.558	212
STC-30	37.5	30	400	54.1	0.8	1500/1800	4	794966	257
STC-40	50	40	400	72.2	0.8	1500/1800	4	794966	290
STC-50	62.5	50	400	90.2	0.8	1500/1800	4	794966	344

Molde	Frame.No	Rated Power (50Hz)		Rated Power(60Hz)		Specification	G.W/N.W	Form
		(KW/KVA)		(KW/KVA)		Specification
		KW	KVA	KW	KVA	Packing Size
SY-A 164A	4#160	6.8	8.5	8.5	10.6	55×49×56	100/90	Hexagonal
SY-A 164B	4#160	8.8	11	11	13.8		110/100
SY-A 164C	4#160	10.8	13.5	13.5	16.9		120/108	Steel
SY-A 164D	4#160	12.8	16	16	20		130/118
SY-A 184E	4#180	18	22.5	23	28.8	64×49×56	140/130	Plate
SY-A 184F	4#180	22	27.5	27.5	34.4		150/140
SY-A 184G	4#180	25	31.3	30	37.5		160/150
SY-A 184H	4#180	30	37.5	37.5	34.9	88×54×81	220/190
SY-A 184J	4#180	32	40	40	50	88×54×81	220/190
MODEL	Frame.No	Rated Power(50Hz)(KW/KVA)		Rated Power(60Hz)(KW/KVA)		Specification	G.W/N.W	Form
MODEL	Frame.No	KW	KVA	KW	KVA	Packing Size	G.W/N.W	Form
SY-A 224C	5#.225	34	42.5	42	52.5	88×54×81	275/235	Hexagonal
SY-A 224D	5#.225	40	50	50	62.5		292/255
SY-A 224E	5#.225	48	60	56	70		315/300	Steel
SY-A 224F	5#.225	58	72.5	70	87.5	96×54×81	340/320
SY-A 224G	5#.225	68	85	78	97.5	96×54×81	396/380	Plate
SY-A 274C	7#.270	80	100	94	118	88×62×88	425/390
SY-A 274D	7#.270	91	114	110	138		455/430
SY-A 274E	7#.270	112	140	134	168		510/480
SY-A 274F	7#.270	128	160	152	190	100×62×88	555/520
SY-A 274G	7#.270	140	175	170	213		610/570
SY-A 274H	7#.270	160	200	196	145		625/585
SY-A 274J	7#.270	180	225	225	282	120×66×88	700/660
SY-A 274K	7#.270	200	250	250	312.5	120×66×88	770/730
model	Frame.No	Rated Power (50Hz)(KW/KVA)		Rated Power(60Hz)(KW/KVA)		Specification	G.W/N.W	Form
model	Frame.No	KW	KVA	KW	KVA	Packing Size	G.W/N.W	Form
SY-A 314C	9#.315	200	250	250	312.5	130×70×98	770/730	Rounded
SY-A314D	9#.315	235	293.75	293.75	366		930/860
SY-A 314E	9#.315	260	325	325	406		950/880	Steel
SY-A 314F	9#.315	304	380	380	475		1180/1100
SY-A 354C	10#.355	360	450	450	562.5	145×80×110	1180/1100	Plate
SY-A 354D	10#.355	400	500	500	625		1180/1100
SY-A 354E	10#.355	480	600	600	750		1500/1420
SY-A 354F	10#.355	536	670	670	837.5		1660/1570
Model	Frame.No	Rated Power (50Hz)(KW/KVA)		Rated Power(60Hz)(KW/KVA)		Specification	Form
Model	Frame.No	KW	KVA	KW	KVA	Packing Size	Form
SY-A 404B	11#400	600	750	750	937.5	180×95×125	Rounded
SY-A 404C	11#400	640	800	800	1000
SY-A 404D	11#400	728	910	910	1137.5		Steel
SY-A 404E	11#400	800	1000	1000	1250
SY-A 404F	11#400	900	1125	1125	1406	190×95×125	Plate
SY-A 404G	11#400	1000	1250	1250	1562.5	190×95×125
1) Insulation Class: H
2) Protection Class: IP 21 or IP23
