GF-W125
| Quantity: | |
|---|---|

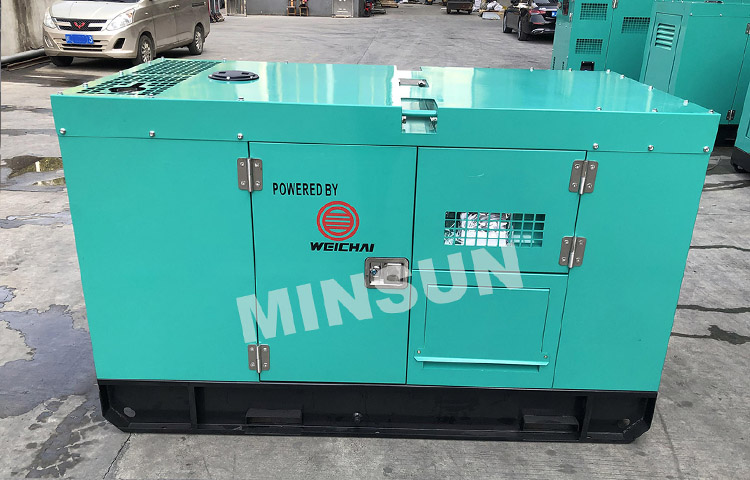

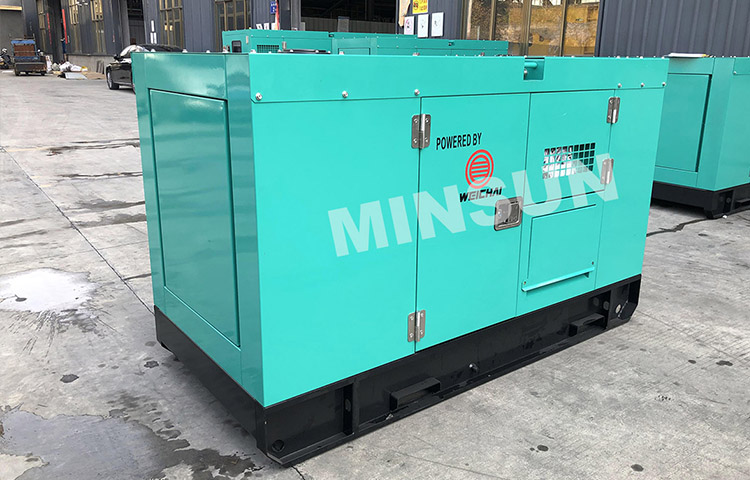

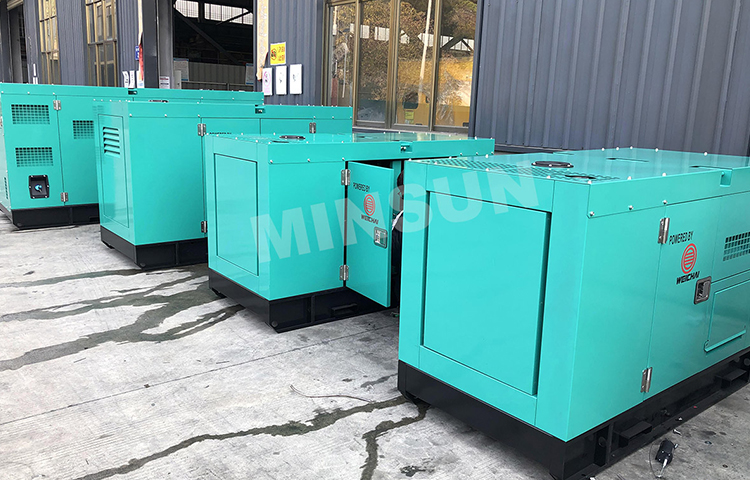

This visual showcase provides a detailed overview of the 100kW 125kVA Weichai WP6D132E200 diesel generator. The structural design emphasizes robust industrial aesthetics, engineered to withstand demanding operational environments while ensuring reliable power output for continuous or standby applications.

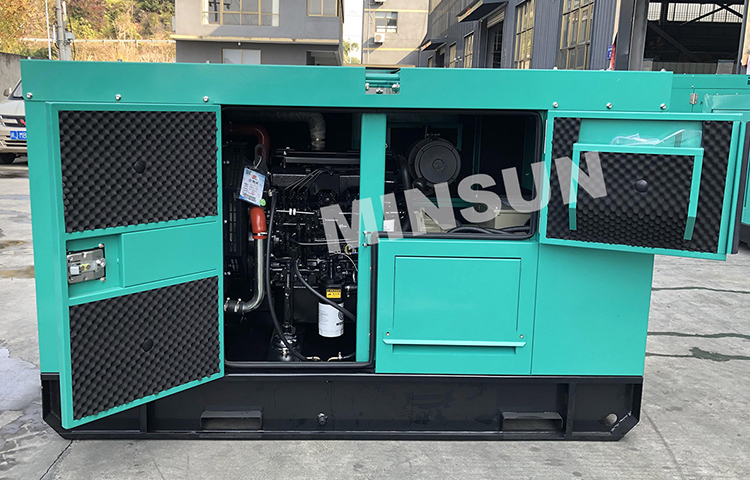

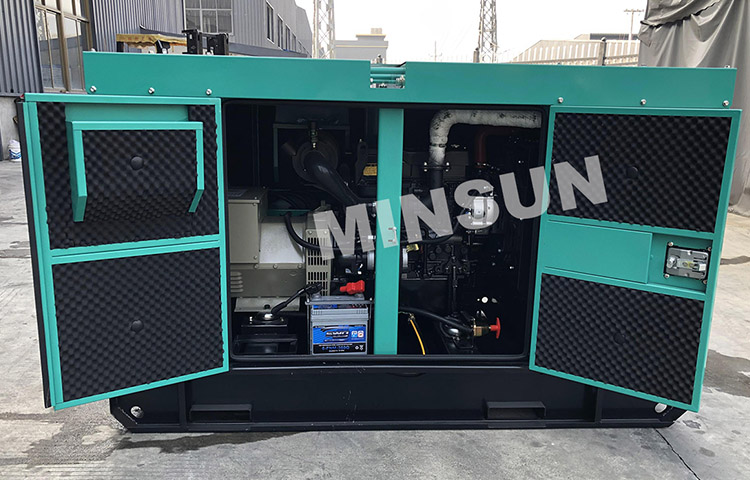

Observe the logical and clean layout of the generator set. The integration of the core Weichai engine ensures a compact footprint, optimizing space utilization. This open-access design maintains excellent ventilation for cooling efficiency and provides direct access for routine inspection tasks.

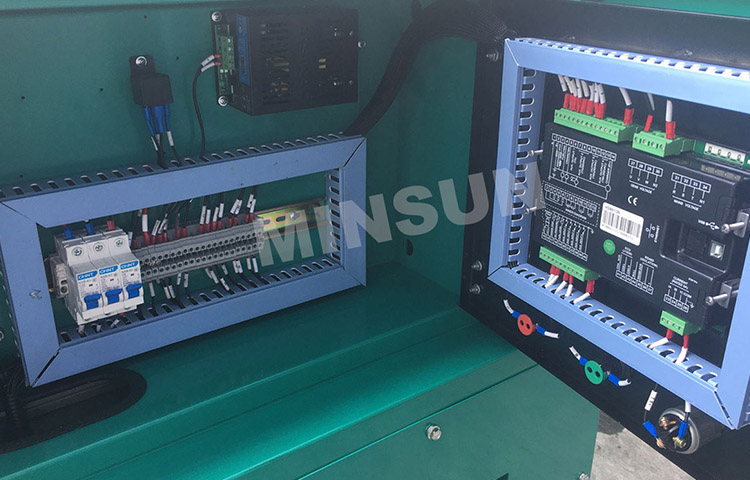

Attention to detail is a priority in the manufacturing process of this 100kW generator. From sturdy vibration isolators that reduce operational noise to the heavy-duty framework and well-organized wiring, these structural elements are specifically chosen to minimize mechanical wear and enhance long-term stability.

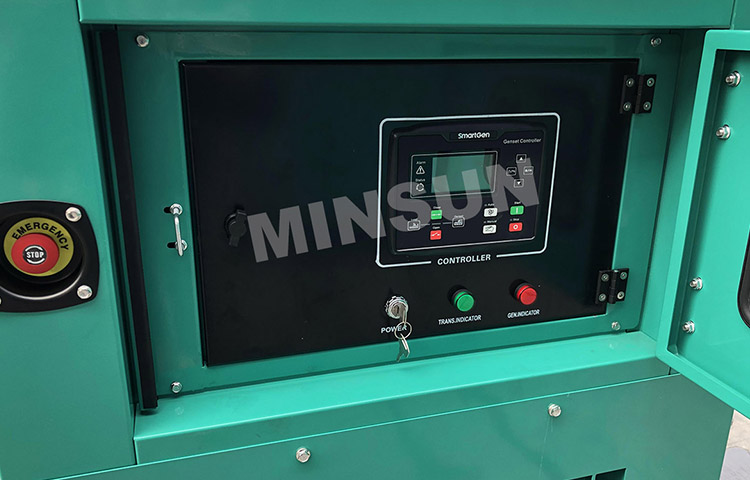

The display also highlights user-friendly operation points and accessible service areas. These practical design choices aim to simplify daily operation procedures, reduce maintenance downtime, and support efficient power management for your specific project requirements.
Review the comprehensive technical specifications of the 100kW/125kVA Weichai WP6D132E200 diesel generator below. Designed for robust industrial and commercial applications, this genset delivers stable power output with an electronic speed control system and a highly efficient 6-cylinder turbocharged engine. The detailed data sheets covering the genset, engine, alternator, and available configurations are provided to help you make an informed purchasing decision and ensure seamless integration into your power projects.
GENSET DATA | ||
Genset Model | GF-WC125 | |
Genset Power | 100kW/125kVA | |
Engine Model | WP6D132E200 | |
Alternator Model | SY-A 274D | |
Speeding Mode | Electronic | |
Phase | 3 | |
Control System | Digital | |
Starting Voltage | 24V | |
Frequency | 50HZ | |
Rated Speed [r.p.m] | 1500 | |
Fuel consumption [L/h] | 100% Load | 28.6 |
75% Load | —— | |
50% Load | —— | |
ENGINE DATA | |
Output power | 120KW |
Number of Cylinders | 6 |
Type | 4-stroke, In line |
Aspiration | Turbo |
Bore | 105mm |
Stroke | 130mm |
Displacement | 6.75L |
Speed | 1500r/min |
Start motor | 24v |
Lube oil capacity | 16L |
Cooling system | Water cooling cycle |
Filter system | Oil, fuel and air filters |
ALTERNATOR DATA | |
Output power | 100kw |
Phase | 3 |
Power factor | 0.8 |
Number of poles | 4 |
Winding | Star winding |
Line | 12 |
Insulation class | Class H |
Protection | IP23 |
Excitation system | Self excitation, brushless |
Bearing | Single |
Coating type | Vacuum dipping |
Voltage regulator | A.V.R |
Connection mode | Flexible disc coupling |
Ambient temperature | 40℃ |
Voltage regulation rate | <=±1% |
OPTION | |||
Genset | Genset Type | Engine | Controller |
ATS | Open / Silent / Trailer Type | Water heater | Smartgen / Lixise / Deep Sea |
Socket | Oil heater | ||
The parameter data provided above ensures that the 100kW Weichai diesel generator meets stringent operational requirements. With customizable options including ATS, various controller brands, and enclosure types (open, silent, or trailer), this genset can be tailored to specific project demands. For further technical clarification or configuration assistance regarding the WP6D132E200 engine and SY-A 274D alternator, please refer to our engineering guidelines.
As a dedicated manufacturer and supplier in the power generation industry, we specialize in the research, development, production, and distribution of reliable diesel generator sets. Our commitment to delivering stable and efficient power solutions has earned us the trust of clients worldwide. We focus on integrating advanced manufacturing technologies with stringent quality management to ensure every generator meets the demanding requirements of various industrial, commercial, and emergency backup applications. By deeply understanding the diverse procurement needs of our global clients, we continuously optimize our production processes to offer equipment that provides long-term value and operational stability.

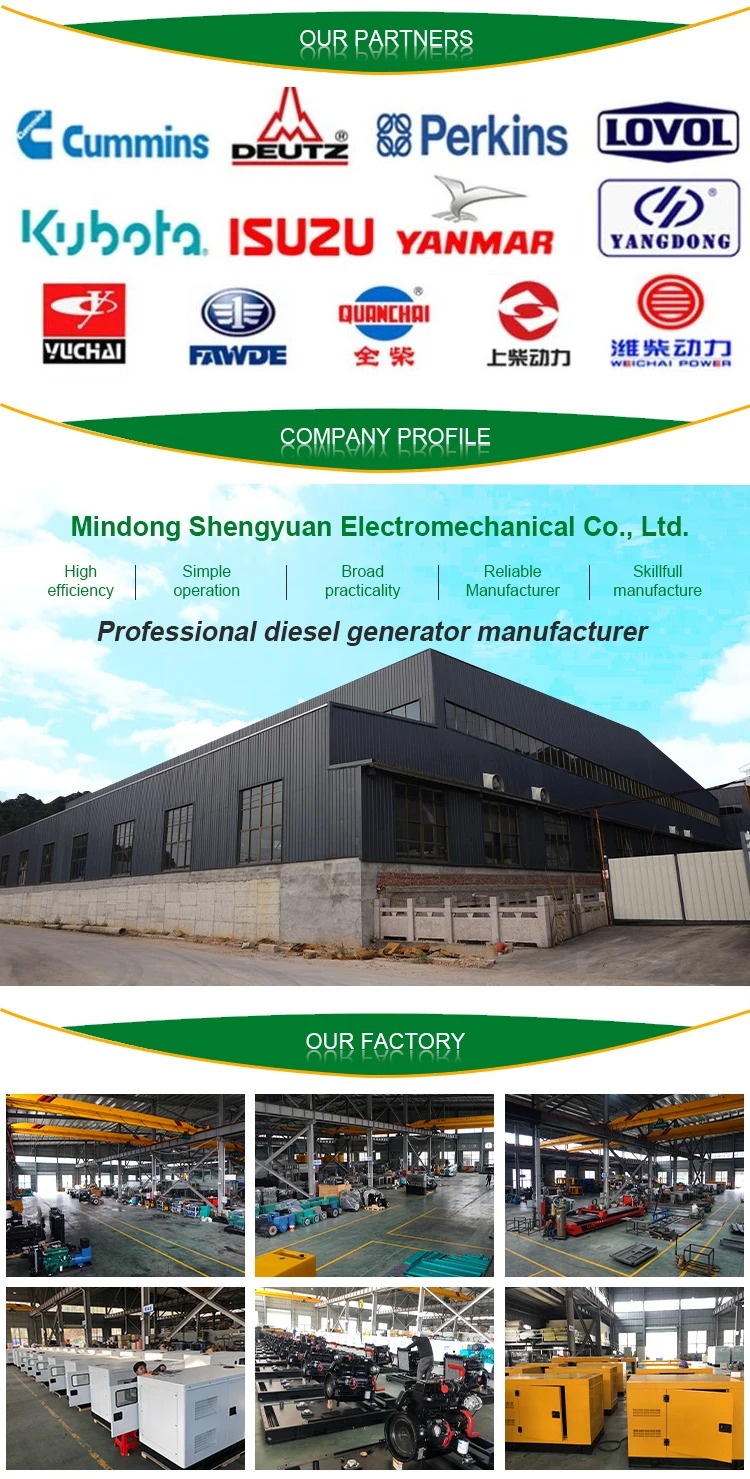

Our modern manufacturing facility is equipped with industry-leading production lines and precision assembly equipment. We have established a comprehensive production system that covers everything from raw material processing and component inspection to final assembly. By maintaining a clean, organized, and highly efficient workshop environment, we ensure that every stage of the manufacturing process is carefully monitored and executed according to standardized protocols.
The integration of automated machinery and skilled craftsmanship allows us to maintain consistency across our entire product range. Our production capacity is designed to handle both standard orders and customized power solutions, ensuring timely delivery for large-scale projects without compromising on structural integrity or performance.
Over the years, our company has continuously evolved, expanding our footprint in the global power equipment market. We have built a strong supply chain and forged strategic partnerships with renowned engine and alternator brands. This solid foundation enables us to provide comprehensive power solutions that are not only powerful but also highly durable and cost-effective for long-term operation. We are dedicated to reducing procurement risks for our clients by ensuring transparency and traceability throughout our manufacturing cycle.

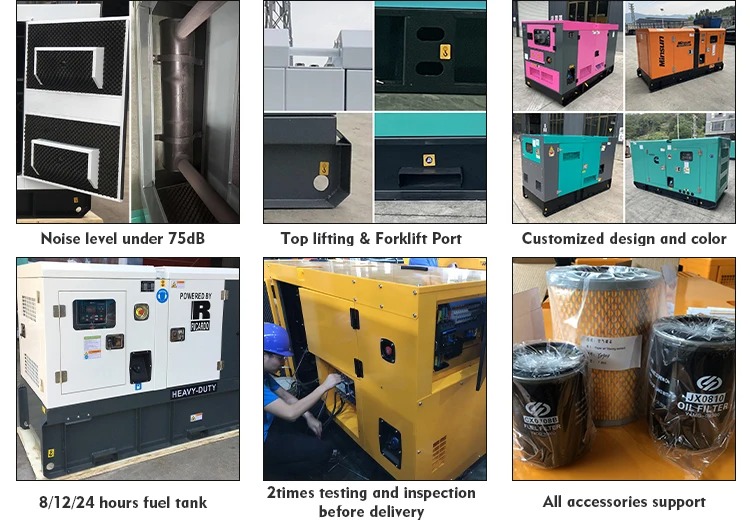

Quality is the cornerstone of our manufacturing philosophy. Before any diesel generator leaves our facility, it must undergo a series of rigorous testing procedures in our dedicated inspection center. Our quality control team conducts comprehensive load testing, performance evaluations, and safety inspections to verify that each unit operates reliably under varying conditions and heavy workloads.
