GF-W180
| Quantity: | |
|---|---|
Visual Display of the 144kW 180kVA Weichai WP6D167E200 Diesel Generator
The following images showcase the robust structural design, industrial-grade manufacturing, and component layout of the generator set, engineered for reliable power applications and convenient maintenance.
Overall view of the 144kW 180kVA Weichai diesel generator, showcasing its robust structure.

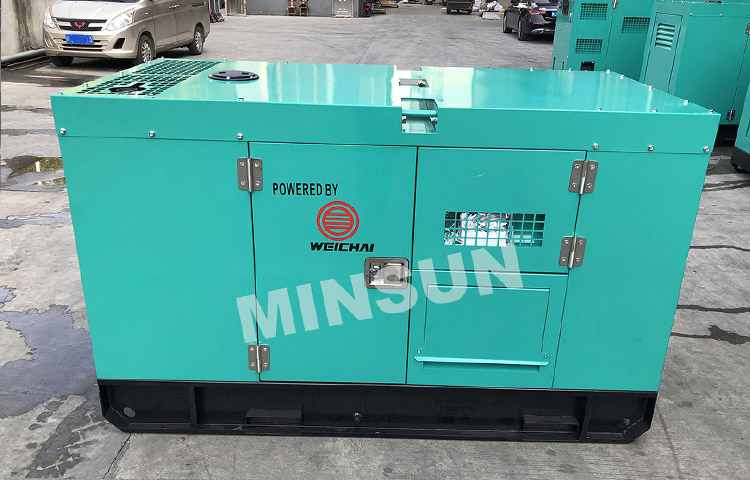

Side perspective highlighting the compact design and layout of the WP6D167E200 engine.

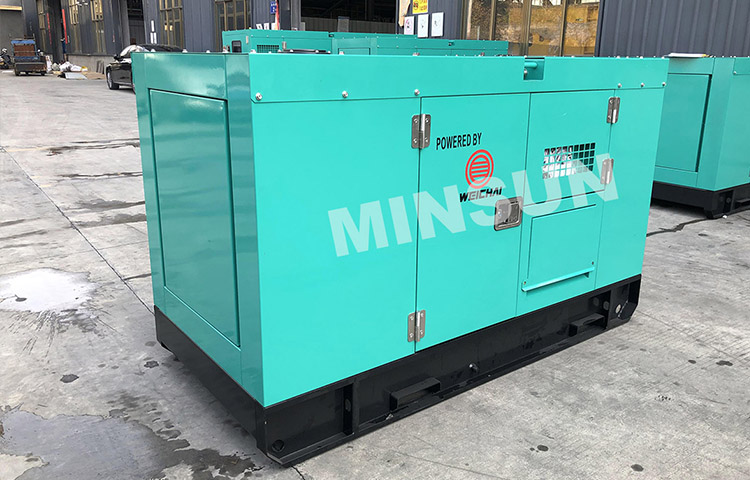

Detailed view of the generator components, designed for reliable and continuous power output.

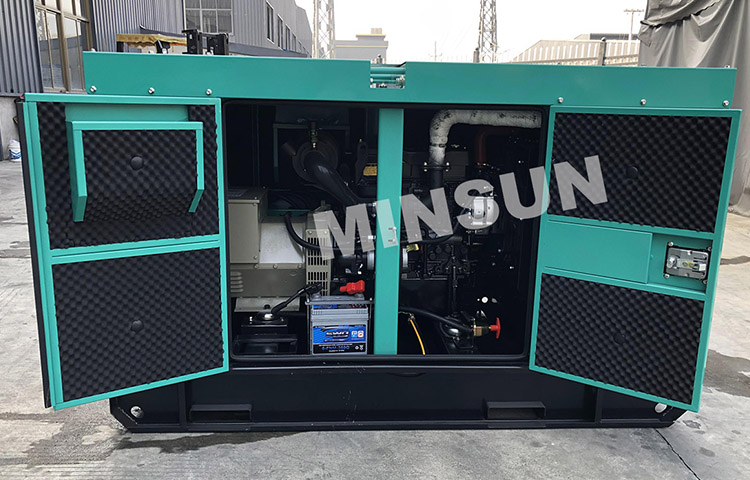

Sturdy base frame and anti-vibration mounting system engineered for stable operation.
Cooling and structural layout ensuring optimal thermal management under heavy loads.

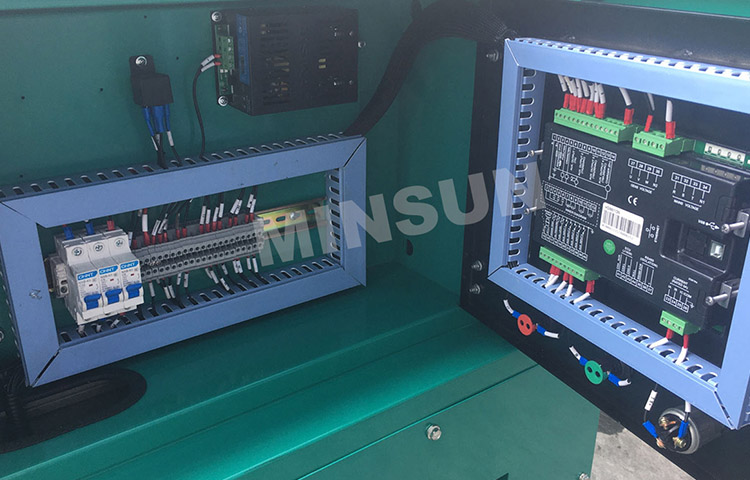

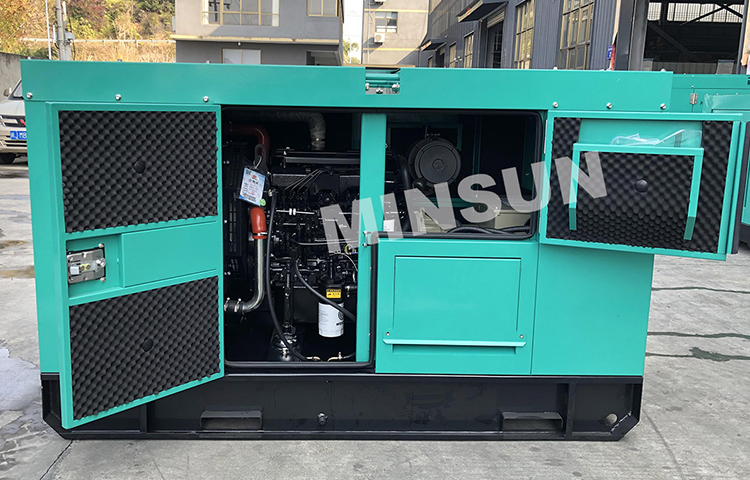

Internal wiring and structural details, arranged for safe access and easy maintenance.
Alternative side view displaying the industrial-grade manufacturing quality of the genset.

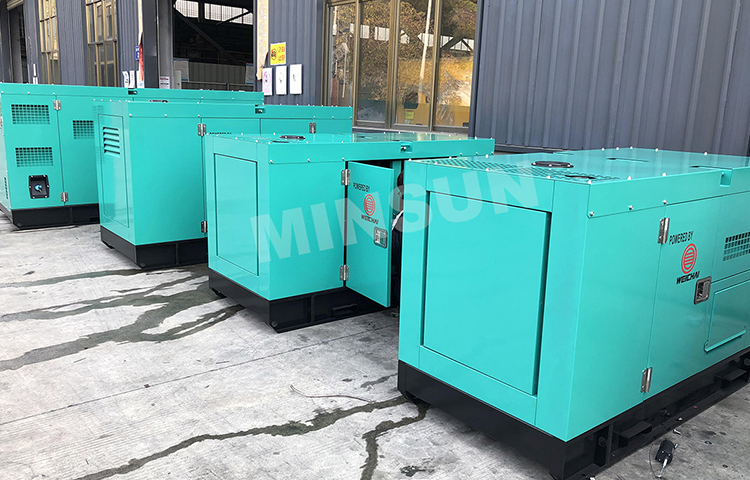

Comprehensive visual display of the 180kVA genset, ready for demanding power applications.
The following technical data sheet outlines the core specifications of the 144kW 180kVA Weichai WP6D167E200 diesel generator. These detailed parameters—covering the overall genset, engine performance, and alternator capabilities—are provided to assist engineers and procurement managers in verifying the equipment's compatibility with specific industrial, commercial, or standby power requirements. Ensuring accurate technical matching helps reduce procurement risks and guarantees long-term operational stability.
GENSET DATA | ||||
Genset Model | GF-WC180 | |||
Genset Power | 144kW / 180kVA | |||
Engine Model | WP6D167E200 | |||
Alternator Model | SY-A 274G | |||
Speed Control Mode | Electronic | |||
Phase | 3 | |||
Control System | Digital | |||
Starting Voltage | 24V | |||
Frequency | 50HZ | |||
Rated Speed [r.p.m] | 1500 | |||
Fuel Consumption | 100% Load | 34.5 | ||
75% Load | —— | |||
50% Load | —— | |||
ENGINE DATA | |||||
Output Power | 152KW | ||||
Number of Cylinders | 6 | ||||
Type | 4-stroke, In line | ||||
Aspiration | Turbo | ||||
Bore | 105mm | ||||
Stroke | 130mm | ||||
Displacement | 6.75L | ||||
Speed | 1500r/min | ||||
Starting Motor | 24v | ||||
Lube Oil Capacity | 16L | ||||
Cooling System | Water cooling cycle | ||||
Filter System | Oil, fuel and air filters | ||||
ALTERNATOR DATA | ||||
Output Power | 144kw | |||
Phase | 3 | |||
Power Factor | 0.8 | |||
Number of Poles | 4 | |||
Winding | Star winding | |||
Line | 12 | |||
Insulation Class | Class H | |||
Protection | IP23 | |||
Excitation System | Self excitation, brushless | |||
Bearing | Single | |||
Coating Type | Vacuum dipping | |||
Voltage Regulator | A.V.R | |||
Connection Mode | Flexible disc coupling | |||
Ambient Temperature | 40℃ | |||
Voltage Regulation Rate | <=±1% | |||
OPTION | |||||||||
Genset | Genset Type | Engine | Controller | ||||||
ATS | Open / Silent / Trailer Type | Water heater | Smartgen / Lixise / Deep Sea | ||||||
Socket | Oil heater | ||||||||
Configuration Flexibility: The optional accessories listed above allow the 144kW Weichai diesel generator to be tailored to specific environmental and operational demands. For instance, selecting a silent canopy is ideal for noise-sensitive areas, while integrating an ATS (Automatic Transfer Switch) ensures seamless power transition during unexpected grid failures. Procurement teams can specify these options to maximize the equipment's value in their particular application scenarios.
