GF-W50
| Quantity: | |
|---|---|
Multi-Angle Visual Display of the 40kW 50kVA Weichai WP2.3D48E200 Diesel Generator
Showcasing the overall exterior appearance, robust structural design, and precise manufacturing craftsmanship designed for reliable power generation.

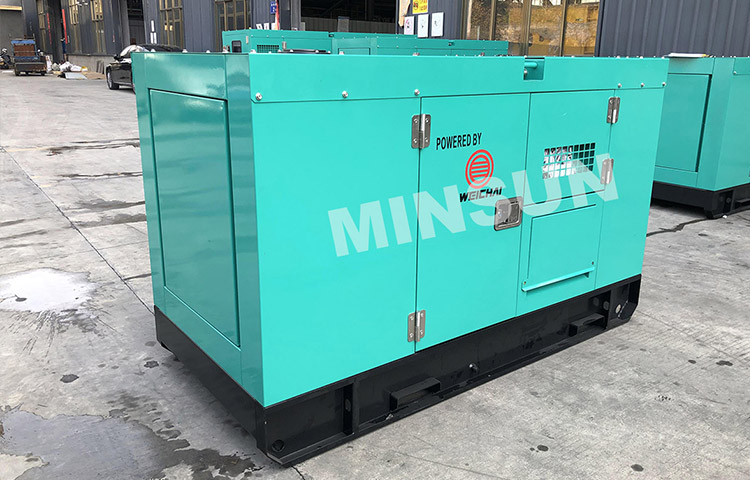

Overall Exterior View

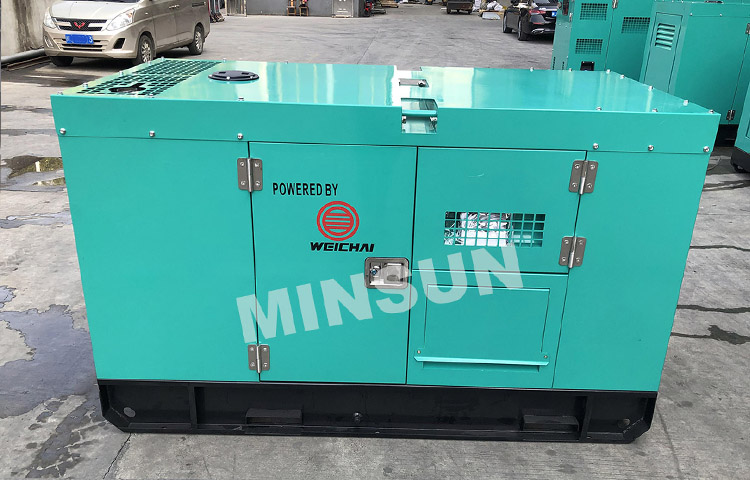

Side Profile & Enclosure Design

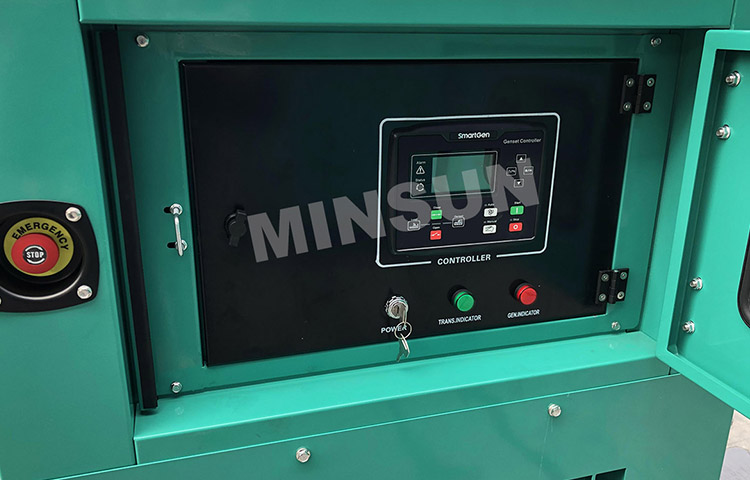

Control Panel Layout

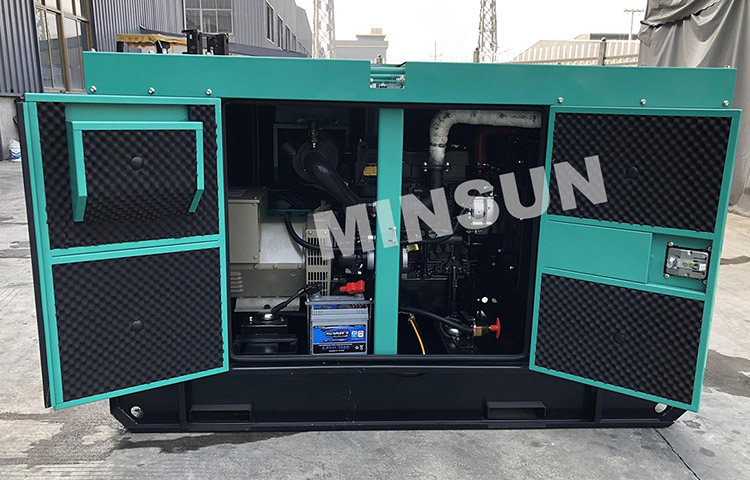

Internal Engine & Component Layout
Structural Details & Craftsmanship

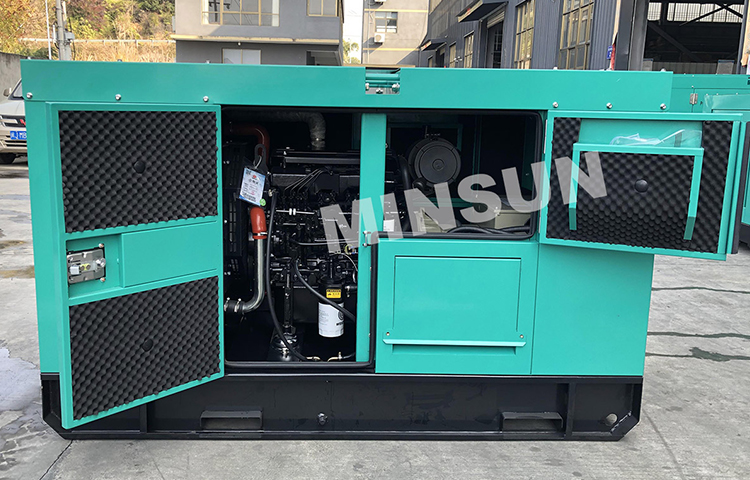

Base Frame & Mounting Details

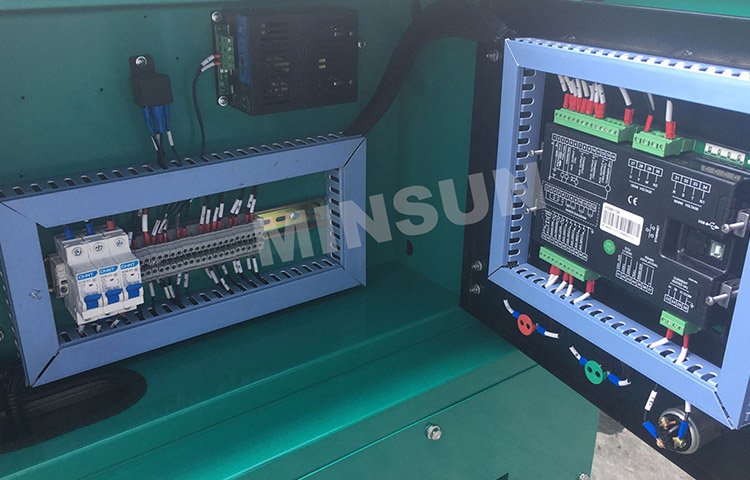

Component Assembly Quality

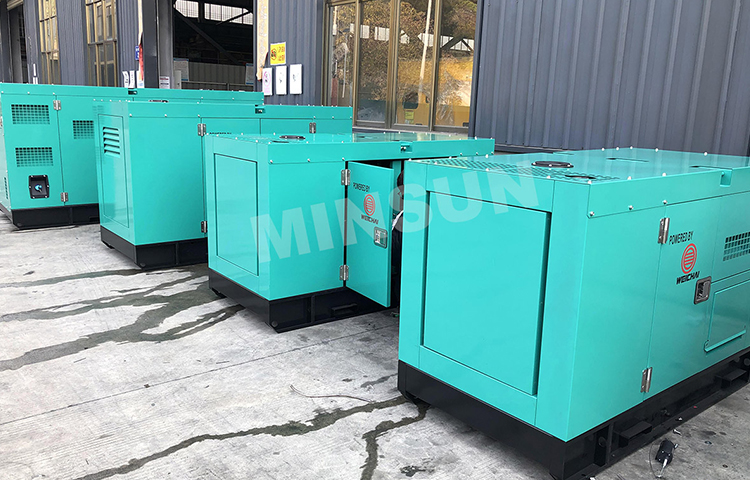

Comprehensive Product Display
Review the comprehensive technical specifications for the 40kW 50kVA Weichai diesel generator (Model: GF-WC50). The following data sheets detail the core genset performance, engine configuration (WP2.3D48E200), alternator specifications, and available optional features. These parameters are provided to assist engineers and procurement managers in verifying equipment compatibility for industrial, commercial, or backup power applications.
GENSET DATA | ||||
Genset Model | GF-WC50 | |||
Genset Power | 40kW/50kVA | |||
Engine Model | WP2.3D48E200 | |||
Alternator Model | SY-A 224D | |||
Speeding Mode | Electronic | |||
Phase | 3 | |||
Control System | Digital | |||
Starting Voltage | 12V | |||
Frequency | 50HZ | |||
Rated Speed[r.p.m] | 1500 | |||
Fuel | 100%Load | 11.3 | ||
75%Load | —— | |||
50%Load | —— | |||
ENGINE DATA | |||||
Output power | 48.4KW | ||||
Number of Cylinders | 4 | ||||
Type | 4-stroke, In line | ||||
Aspiration | Turbo | ||||
Bore | 89mm | ||||
Stroke | 92mm | ||||
Displacement | 2.289L | ||||
Speed | 1500r/min | ||||
Start motor | 12v | ||||
Lube oil capacity | 8L | ||||
Cooling system | water cooling cycle | ||||
Filter system | oil, fuel and air filters | ||||
ALTERNATOR DATA | ||||
Output power | 40kw | |||
Phase | 3 | |||
Power factor | 0.8 | |||
Number of poles | 4 | |||
Winding | Star winding | |||
Line | 12 | |||
Insulation class | class H | |||
Protection | IP23 | |||
Excitation system | Self excitation, brushless | |||
Bearing | single | |||
Coating type | Vacuum dipping | |||
Voltage regulator | A.V.R | |||
Connection mode | Flexible disc coupling | |||
Ambient temperature | 40℃ | |||
Voltage regulation rate | <=±1% | |||
OPTION | |||||||||
Genset | Genset Type | Engine | Controller | ||||||
ATS | Open/silent/Trailer Type | water heater | Smartgen/Lixise/Deep Sea | ||||||
Socket | Oil heater | ||||||||
