GF-W80
| Quantity: | |
|---|---|
Visual Overview of the 64kW 80kVA Weichai Diesel Generator
Explore the industrial design and manufacturing craftsmanship of our generator set. The gallery below showcases the robust exterior, intuitive control panel, and well-organized internal structure, carefully designed to ensure reliable performance and convenient maintenance for various demanding applications.

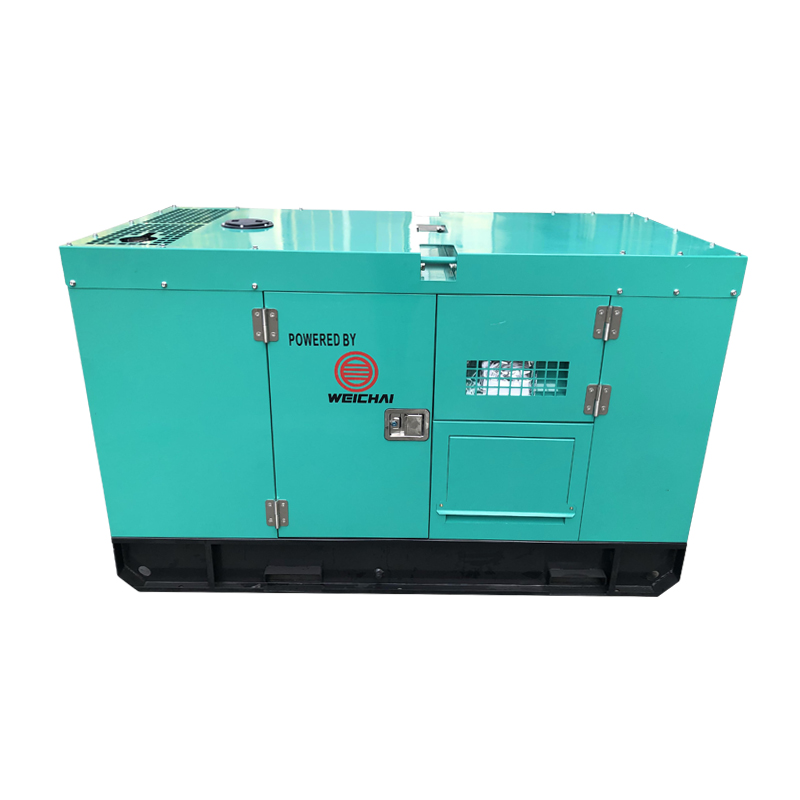

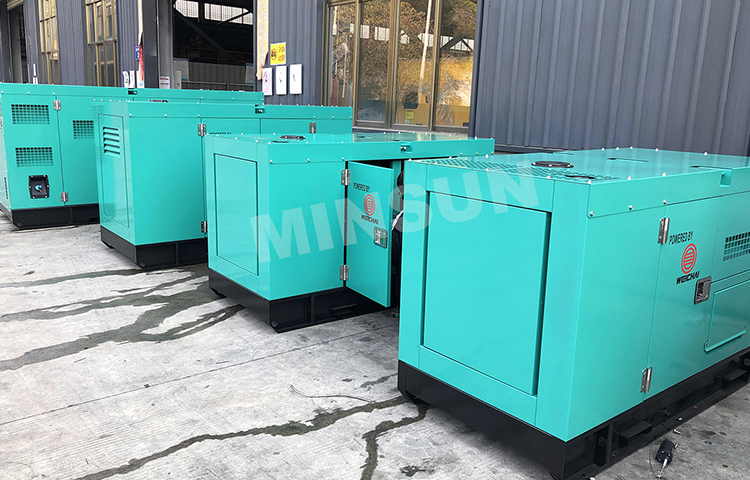

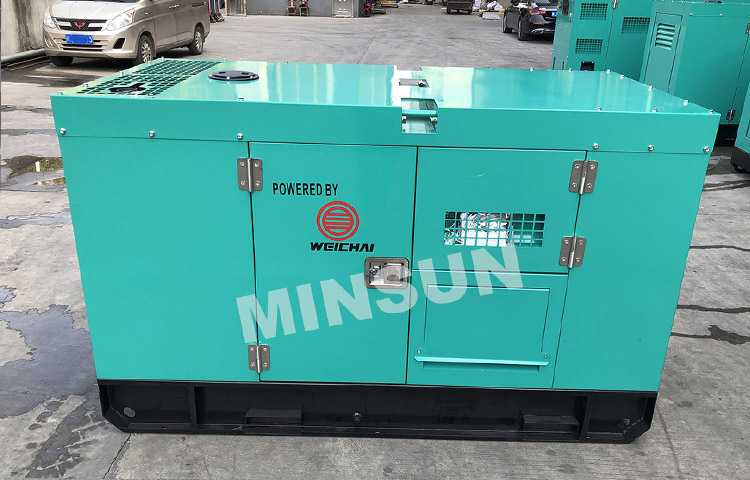

Overall appearance showcasing the durable construction and compact structural design.

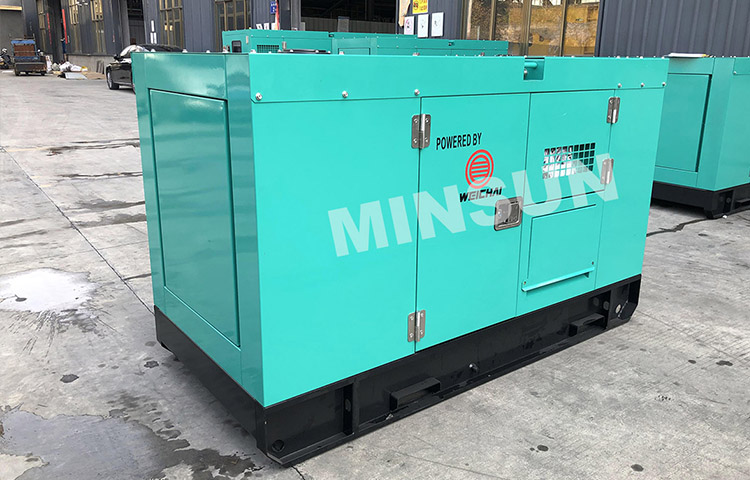

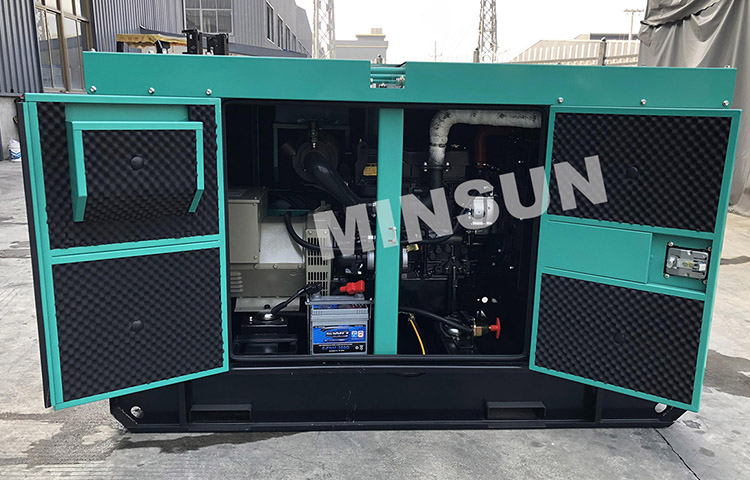

Clear view of the structural details and easy-access doors designed for efficient daily maintenance.

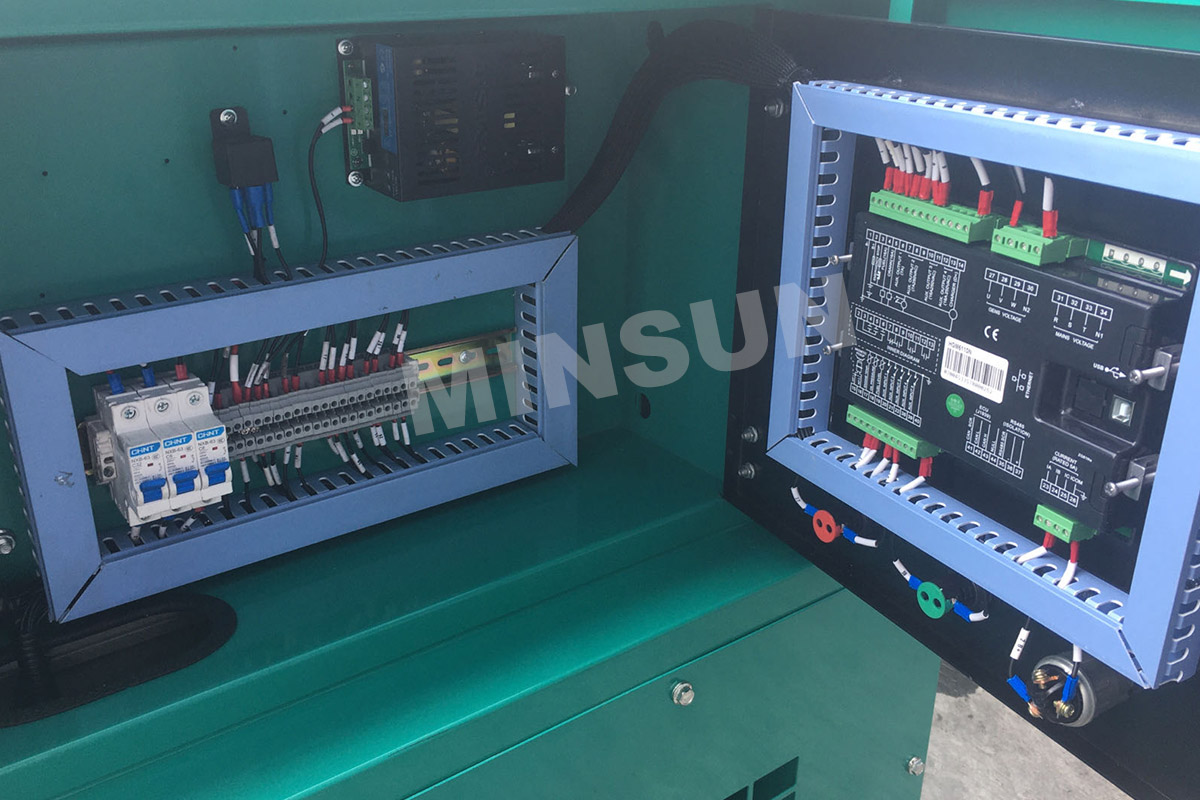

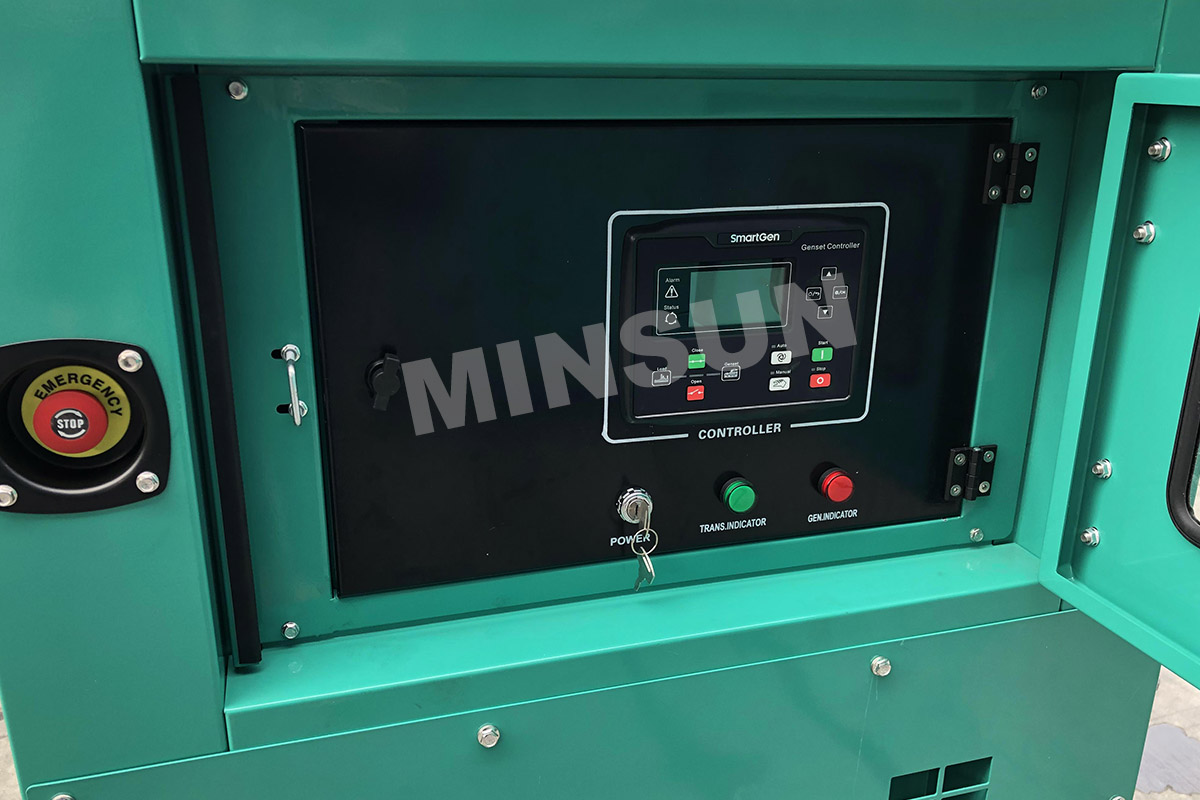

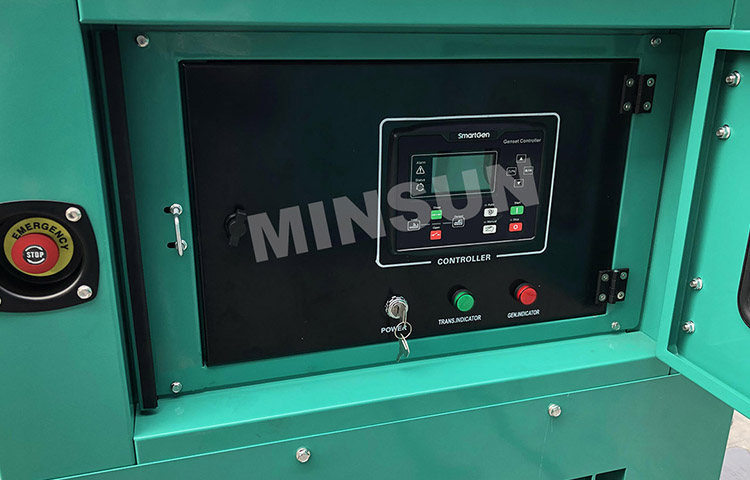

Intuitive control panel layout designed for straightforward operation, monitoring, and quick status checks.

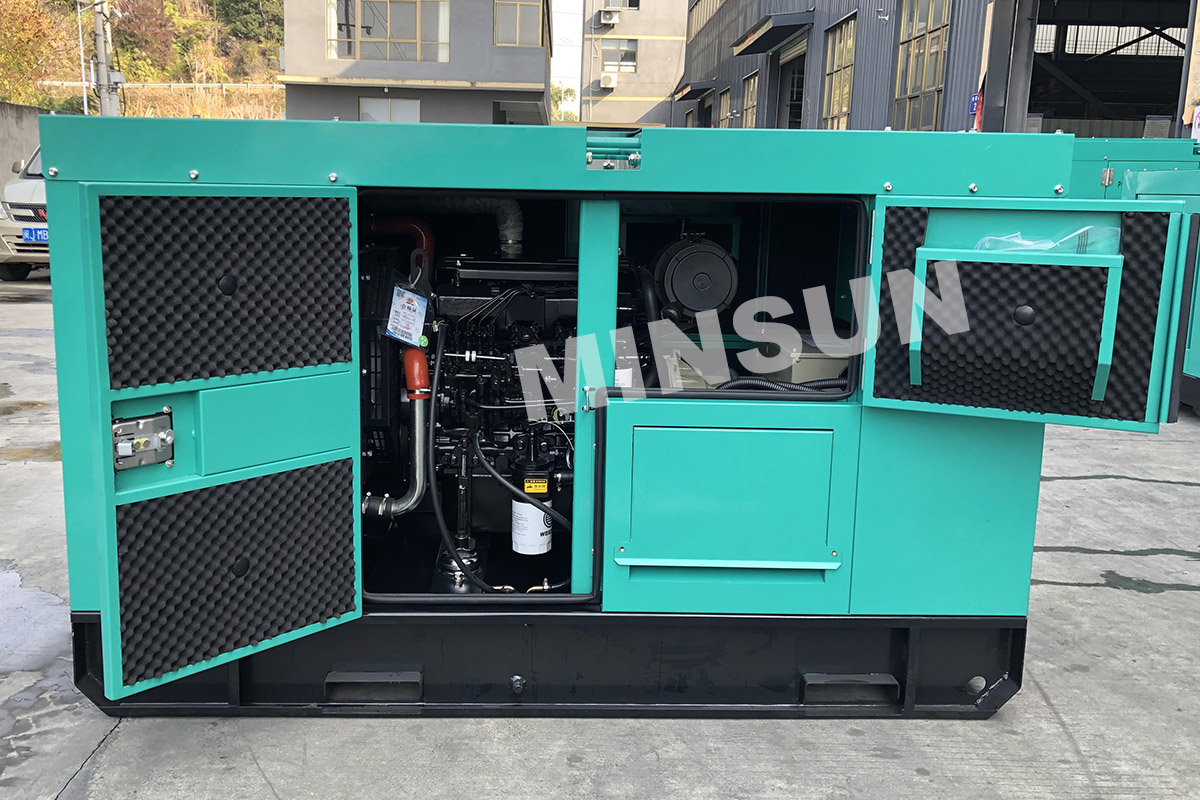

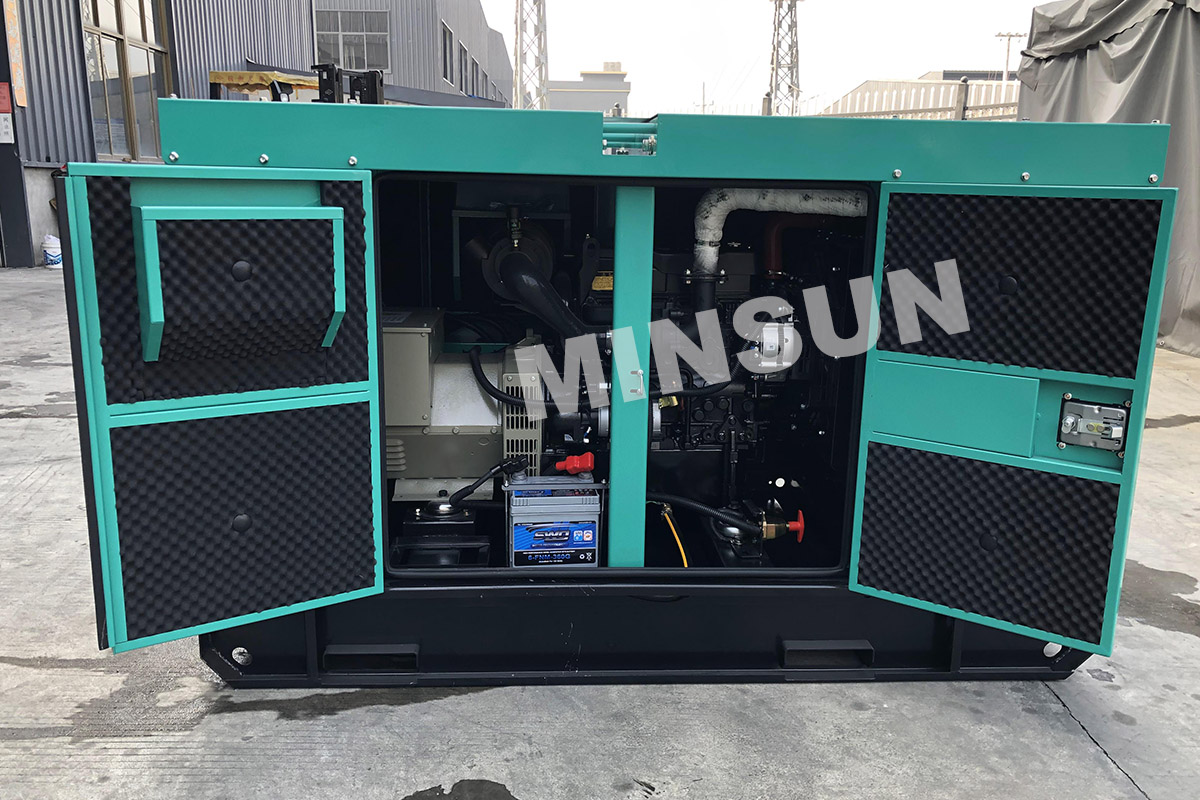

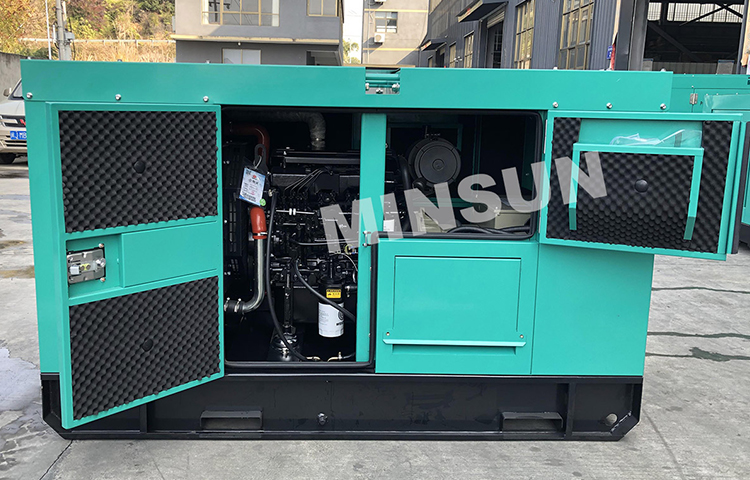

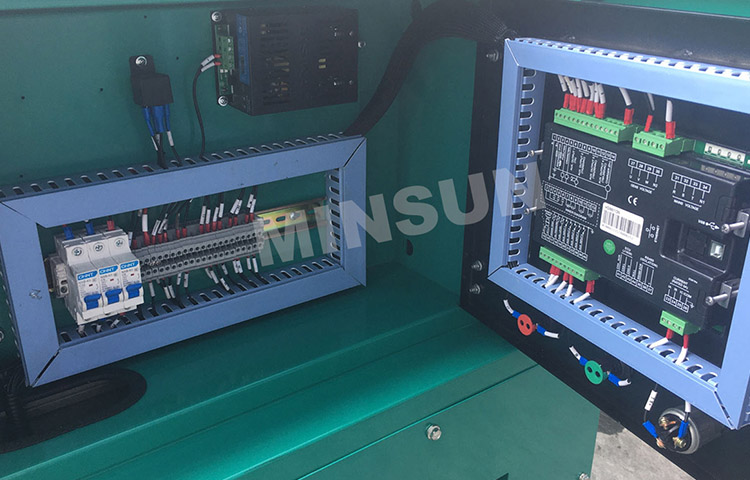

Internal structure highlighting the secure integration of the Weichai WP4.1D80E200 engine, neat wiring, and premium components.
Sturdy base frame and refined manufacturing craftsmanship ensuring long-term operational stability and safety.
Review the comprehensive technical data sheet for the 64kW 80kVA Weichai WP4.1D80E200 diesel generator below. These specifications encompass the overall genset performance, engine capabilities, alternator metrics, and available optional configurations to support accurate technical sizing and project selection.
GENSET DATA | ||||
Genset Model | GF-WC80 | |||
Genset Power | 64kW/80kVA | |||
Engine Model | WP4.1D80E200 | |||
Alternator Model | SY-A 224G | |||
Speed Governing Mode | Electronic | |||
Phase | 3 | |||
Control System | Digital | |||
Starting Voltage | 24V | |||
Frequency | 50HZ | |||
Rated Speed[r.p.m] | 1500 | |||
Fuel | 100% Load | 19.7 | ||
75% Load | —— | |||
50% Load | —— | |||
ENGINE DATA | |||||
Output power | 80KW | ||||
Number of Cylinders | 4 | ||||
Type | 4-stroke, In line | ||||
Aspiration | Turbo | ||||
Bore | 105mm | ||||
Stroke | 118mm | ||||
Displacement | 4.087L | ||||
Speed | 1500r/min | ||||
Start motor | 24v | ||||
Lube oil capacity | 13L | ||||
Cooling system | water cooling cycle | ||||
Filter system | oil, fuel and air filters | ||||
ALTERNATOR DATA | ||||
Output power | 64kw | |||
Phase | 3 | |||
Power factor | 0.8 | |||
Number of poles | 4 | |||
Winding | Star winding | |||
Line | 12 | |||
Insulation class | class H | |||
Protection | IP23 | |||
Excitation system | Self excitation, brushless | |||
Bearing | single | |||
Coating type | Vacuum dipping | |||
Voltage regulator | A.V.R | |||
Connection mode | Flexible disc coupling | |||
Ambient temperature | 40℃ | |||
Voltage regulation rate | <=±1% | |||
OPTION | |||||||||
Genset | Genset Type | Engine | Controller | ||||||
ATS | Open/silent/Trailer Type | water heater | Smartgen/Lixise/Deep Sea | ||||||
Socket | Oil heater | ||||||||
Note: The optional configurations listed above allow the genset to be flexibly adapted to specific environmental conditions, operational requirements, and control preferences.
