GF-W37
| Quantity: | |
|---|---|
Explore the robust design and precise engineering of the 30kW 37.5kVA Weichai WP2.3D40E200 Diesel Generator. The following visual gallery highlights the comprehensive exterior, structural design, and component details tailored for reliable industrial performance.

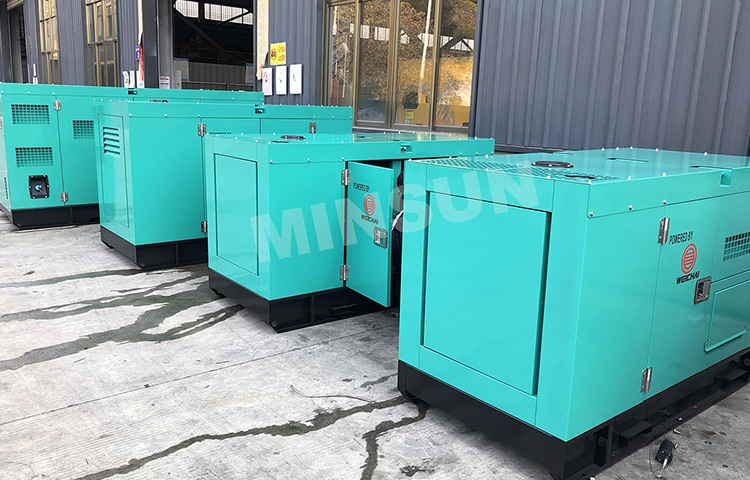

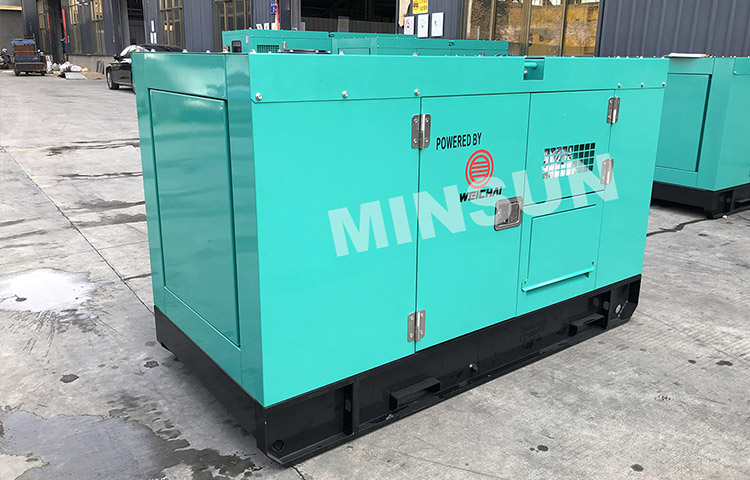

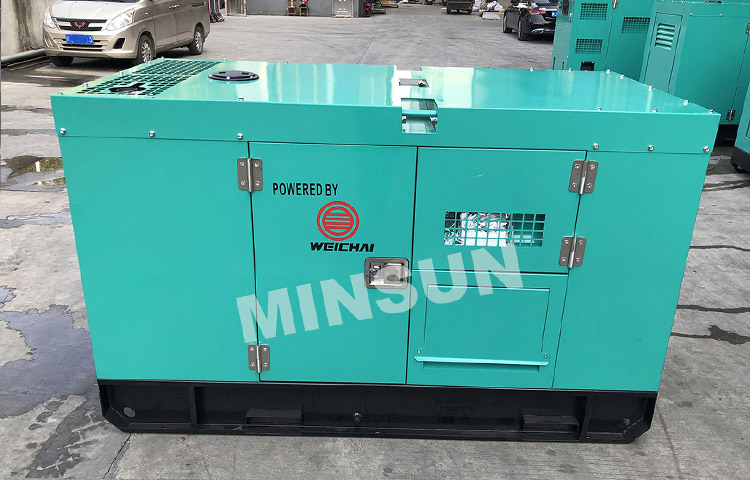

Featuring a compact structural design and durable industrial finish, ensuring long-term stability in various working environments.

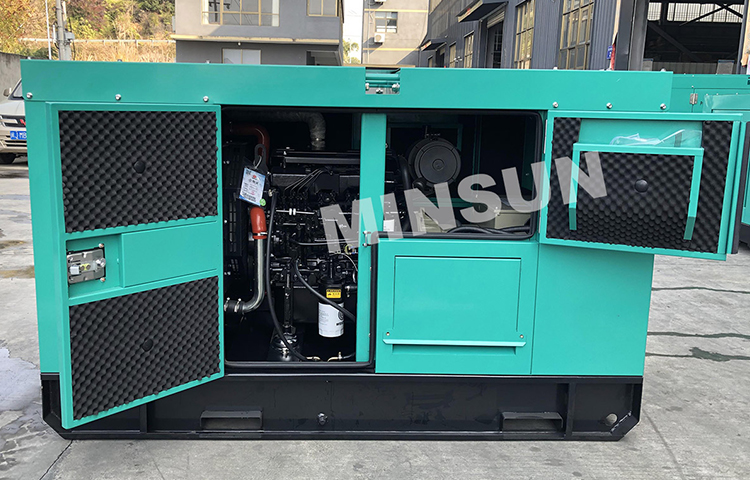

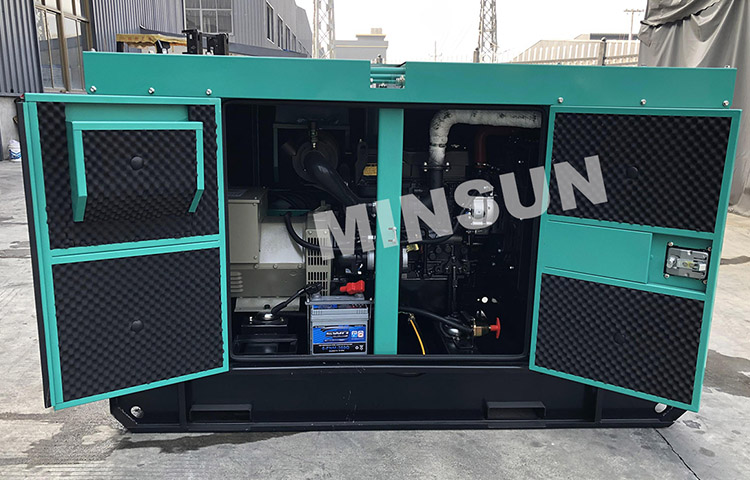

Clear visual details of the internal arrangement, showcasing precise assembly and robust material selection for the engine and alternator.

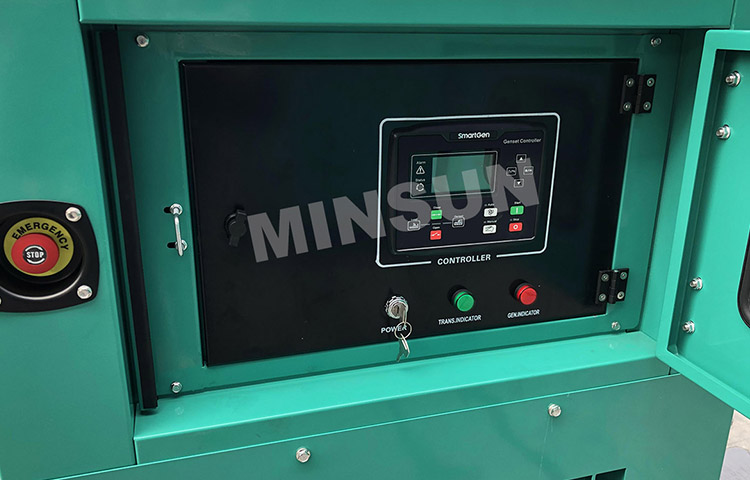

Designed with a clear and accessible layout, ensuring straightforward operation, monitoring, and daily maintenance.

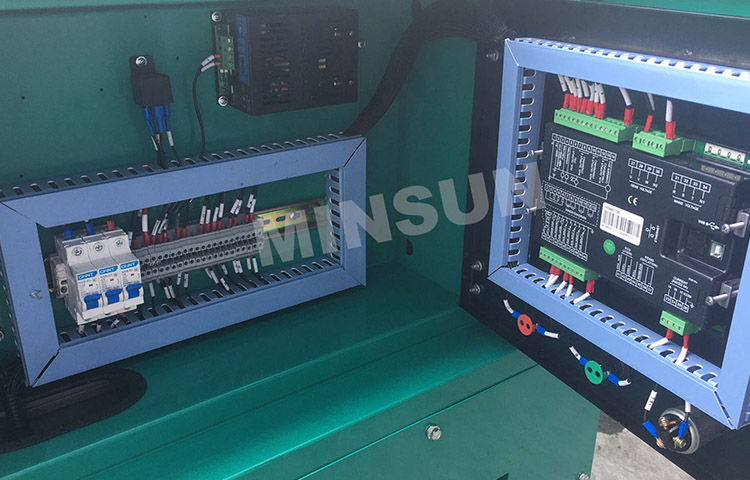

Heavy-duty construction providing stable support, minimizing vibration during operation, and reflecting true industrial-grade quality.
The 30kW 37.5kVA diesel generator set is engineered to deliver reliable and continuous power for various industrial, commercial, and standby applications. Equipped with the robust Weichai WP2.3D40E200 engine and the highly efficient SY-A 184H alternator, this genset ensures stable performance, optimal fuel efficiency, and long-term durability. The detailed technical specifications provided below offer comprehensive data to help you accurately evaluate the equipment's compatibility with your specific project power requirements, ensuring a safe and efficient selection process.
GENSET DATA | ||||
Genset Model | GF-WC37 | |||
Engine Model | WP2.3D40E200 | |||
Alternator Model | SY-A 184H | |||
Speeding Mode | Electronic | |||
Phase | 3 | |||
Control System | Digital | |||
Starting Voltage | 12V | |||
Frequancy | 50HZ | |||
Rated Speed[r.p.m] | 1500 | |||
Fuel | 100%Load | 9 | ||
75%Load | —— | |||
50%Load | —— | |||
ENGINE DATA | |||||
Output power | 36KW | ||||
Number of Cylinders | 4 | ||||
Type | 4-stroke, In line | ||||
Aspiration | Turbo | ||||
Bore | 89mm | ||||
Stroke | 92mm | ||||
Displacement | 2.289L | ||||
Speed | 1500r/min | ||||
Start motor | 12v | ||||
Lube oil capacity | 8L | ||||
Cooling system | water cooling cycle | ||||
Filter system | oil, fuel and air filters | ||||
ALTERNATOR DATA | ||||
Output power | 30kw | |||
Phase | 3 | |||
Power factor | 0.8 | |||
Number of poles | 4 | |||
Winding | Star winding | |||
Line | 12 | |||
Insulation class | class H | |||
Protection | IP23 | |||
Excitation system | Self excitation, brushless | |||
Bearing | single | |||
Coating type | Vacuum dipping | |||
Voltage regulator | A.V.R | |||
Connection mode | Flexible disc coupling | |||
Ambient temperature | 40℃ | |||
Voltage regulation rate | <=±1% | |||
OPTION | |||||||||
Genset | Genset Type | Engine | Controller | ||||||
ATS | Open/silent/Trailer Type | water heater | Smartgen/Lixise/Deep Sea | ||||||
Socket | Oil heater | ||||||||
To meet diverse operational environments, this generator series supports multiple optional configurations. Whether your project requires an Automatic Transfer Switch (ATS) for seamless emergency power backup, a silent canopy for noise-sensitive areas, or advanced digital controllers (such as Smartgen or Deep Sea) for precise system monitoring, the equipment can be tailored to your specific needs. These flexible options are designed to lower operational risks, improve site adaptability, and enhance overall maintenance convenience.
Welcome to our professional generator manufacturing facility. We are dedicated to the research, development, and assembly of reliable power generation equipment. Our factory is equipped with modern manufacturing machinery, a well-organized production environment, and standardized assembly lines. This stable infrastructure ensures that every generator set is built with precision and meets stringent quality standards to support diverse procurement needs and deliver consistent performance in various operational environments.
Our experienced technical team and rigorous quality control system form the backbone of our enterprise strength. From strict component inspection to comprehensive final testing, we maintain careful oversight throughout the entire manufacturing process. Supported by industry qualifications and a dedicated workforce, we are committed to providing clients with dependable power solutions, ensuring long-term operational stability and helping to reduce selection risks for your projects.
