Visual Showcase: 120kW 150kVA Weichai WP6D152E200 Diesel Generator
Explore the robust industrial design, compact structural layout, and premium craftsmanship of our generator set. Designed around the reliable Weichai engine, every visual detail reflects our commitment to structural integrity, easy maintenance, and stable power generation for demanding projects.
Robust overall appearance featuring a heavy-duty base frame and optimized structural layout for secure installation.

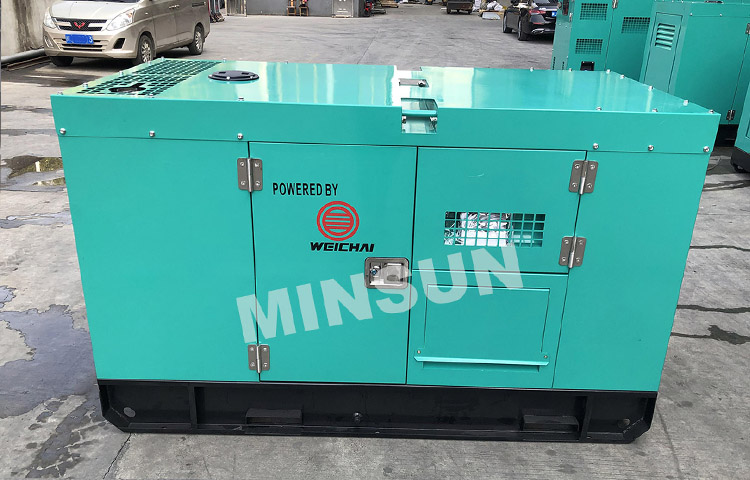

Engineered with the highly reliable Weichai WP6D152E200 engine, ensuring stable 150kVA power output and long-term durability.

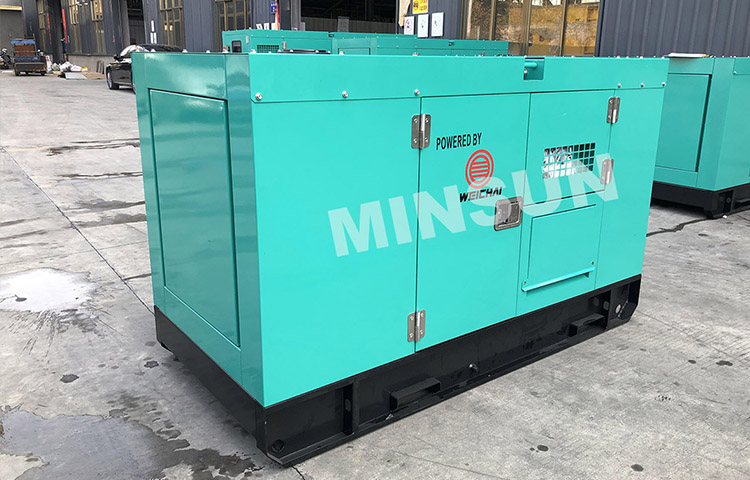

Clear and accessible component arrangement designed for straightforward daily operation, inspection, and maintenance.

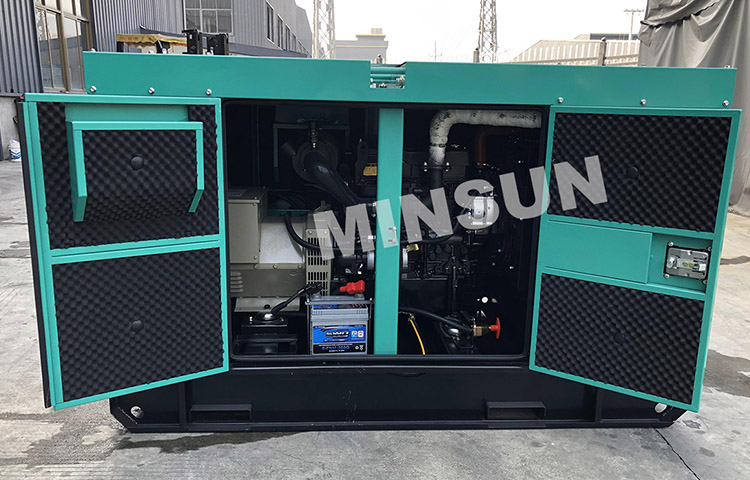

Premium surface treatment and anti-corrosion coating, offering excellent protection against demanding operating environments.

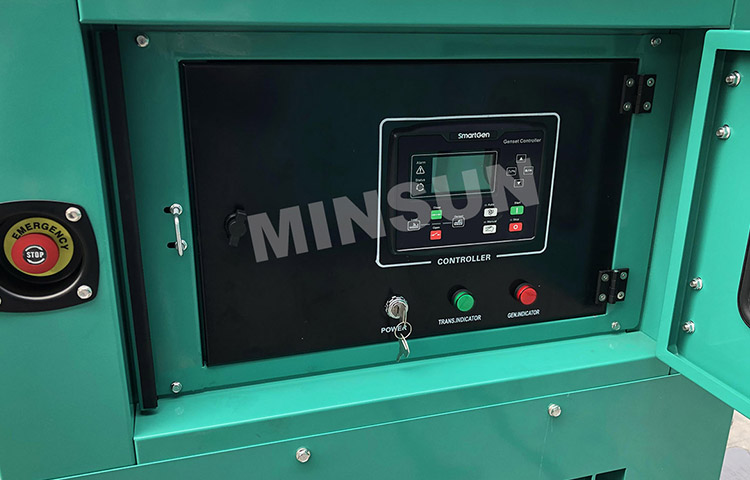

Precision craftsmanship in key mechanical components, reflecting strict quality control and industrial-grade manufacturing standards.

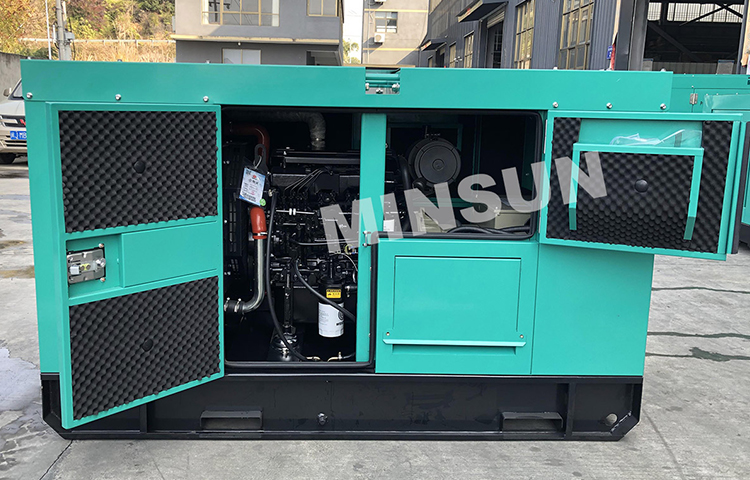

Optimized cooling and exhaust system layout to enhance operational safety and maintain high efficiency under continuous load.

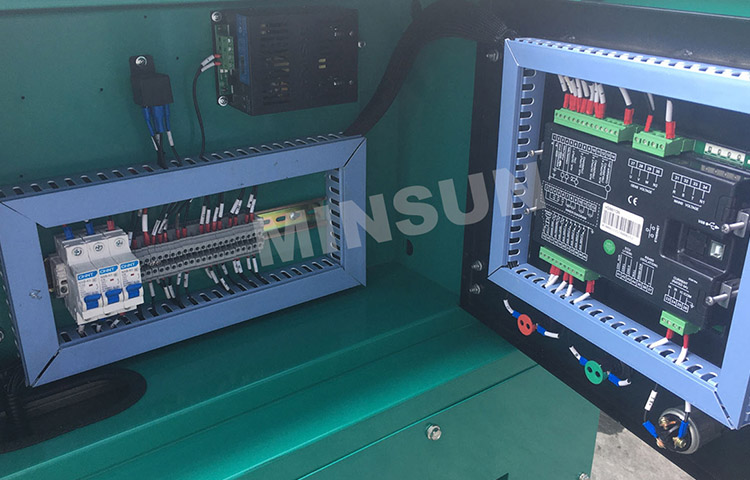

Secure wiring, robust connections, and neat harness routing to minimize electrical faults and ensure reliable performance.

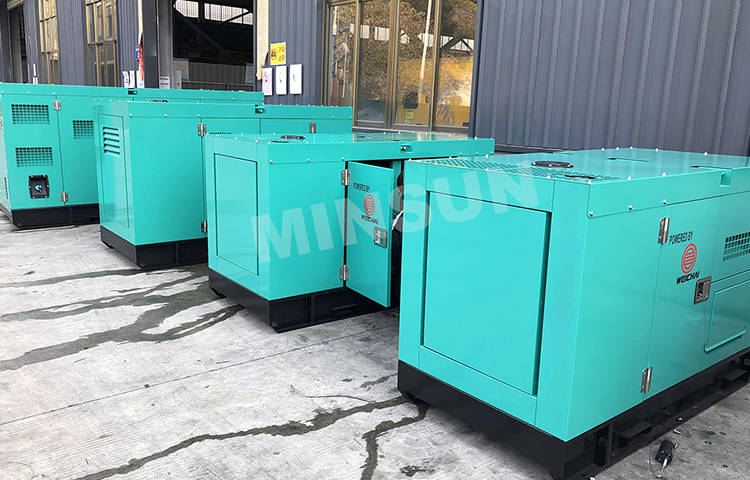

A comprehensive power solution combining the trusted Weichai engine heritage with exceptional build quality for your project needs.
Review the comprehensive technical specifications of the 120kW 150kVA Weichai WP6D152E200 Diesel Generator below. This detailed data sheet provides essential information on the genset performance, engine capabilities, alternator specifications, and available customization options. Designed for industrial and commercial applications, these parameters help ensure accurate sizing, reliable operation, and optimal fuel efficiency for your specific power requirements.
GENSET DATA | ||||
Genset Model | GF-WC150 | |||
Genset Power | 120kW/150kVA | |||
Engine Model | WP6D152E200 | |||
Alternator Model | SY-A 274F | |||
Speeding Mode | Electronic | |||
Phase | 3 | |||
Control System | Digital | |||
Starting Voltage | 24V | |||
Frequency | 50HZ | |||
Rated Speed [r.p.m] | 1500 | |||
Fuel Consumption | 100% Load | 31.3 | ||
75% Load | —— | |||
50% Load | —— | |||
ENGINE DATA | |||||
Output Power | 138KW | ||||
Number of Cylinders | 6 | ||||
Type | 4-stroke, In line | ||||
Aspiration | Turbo | ||||
Bore | 105mm | ||||
Stroke | 130mm | ||||
Displacement | 6.75L | ||||
Speed | 1500r/min | ||||
Start Motor | 24v | ||||
Lube Oil Capacity | 16L | ||||
Cooling System | Water cooling cycle | ||||
Filter System | Oil, fuel and air filters | ||||
ALTERNATOR DATA | ||||
Output Power | 120kw | |||
Phase | 3 | |||
Power Factor | 0.8 | |||
Number of Poles | 4 | |||
Winding | Star winding | |||
Line | 12 | |||
Insulation Class | Class H | |||
Protection | IP23 | |||
Excitation System | Self excitation, brushless | |||
Bearing | Single | |||
Coating Type | Vacuum dipping | |||
Voltage Regulator | A.V.R | |||
Connection Mode | Flexible disc coupling | |||
Ambient Temperature | 40℃ | |||
Voltage Regulation Rate | <=±1% | |||
OPTION | |||||||||
Genset | Genset Type | Engine | Controller | ||||||
ATS | Open / Silent / Trailer Type | Water heater | Smartgen / Lixise / Deep Sea | ||||||
Socket | Oil heater | ||||||||
Note: The technical specifications provided above are based on standard operating conditions. For specific environmental adaptations or customized configurations, please refer to the available options or consult our engineering team to ensure the genset perfectly matches your project demands.
