GF-W20
| Quantity: | |
|---|---|
Explore the industrial-grade construction and meticulous engineering of the 16kW 20kVA Weichai WP2.3D25E200 Diesel Generator. The visual gallery below highlights the multi-angle exterior design, heavy-duty canopy, and precise internal component layout, reflecting its high manufacturing standard and suitability for demanding power requirements.
Comprehensive Overall View

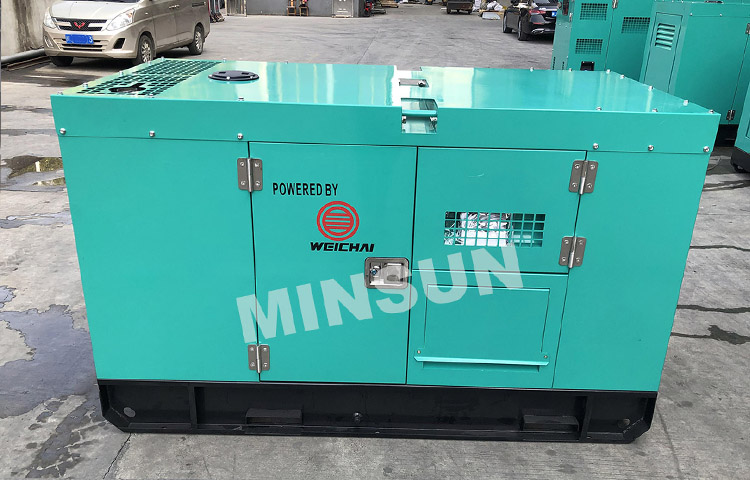

Multi-Angle Exterior Profile

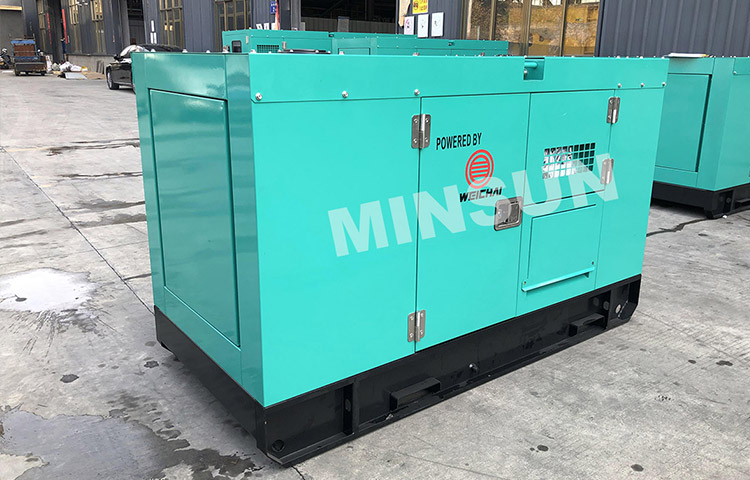

Heavy-Duty Canopy and Structural Framework

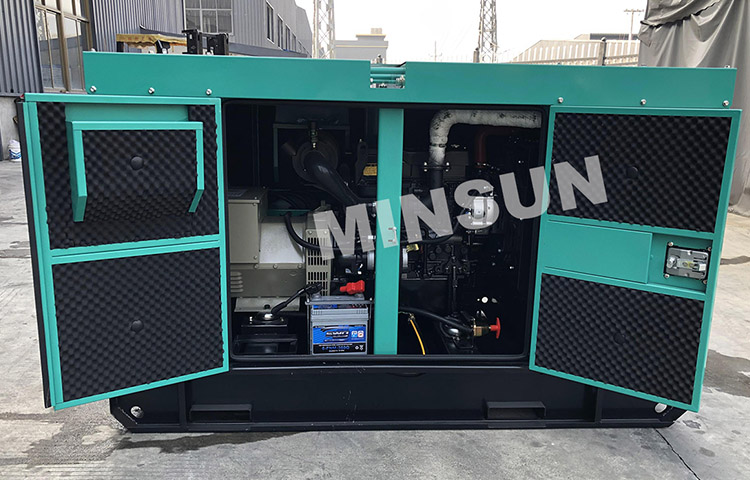

Internal Component Layout

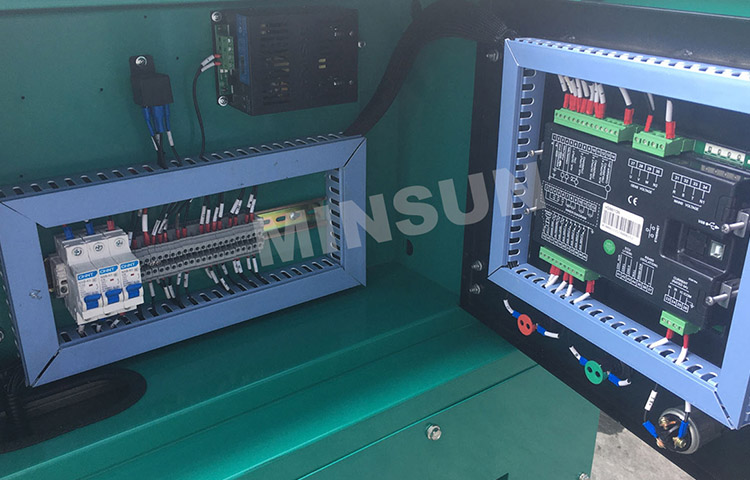

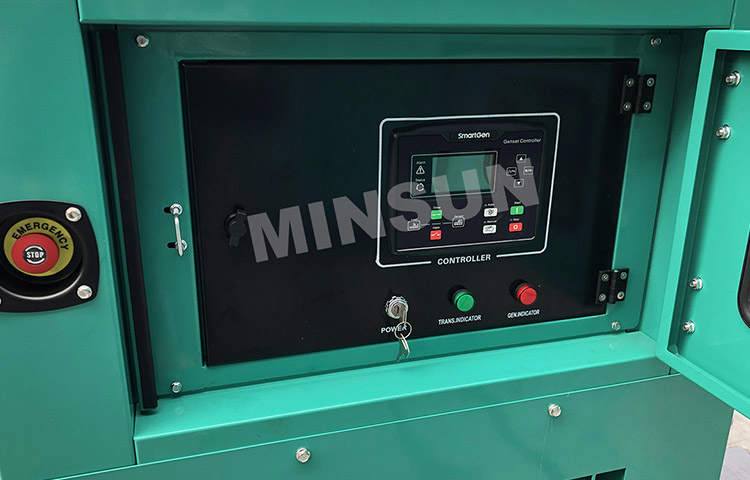

Control Panel and Interface Details

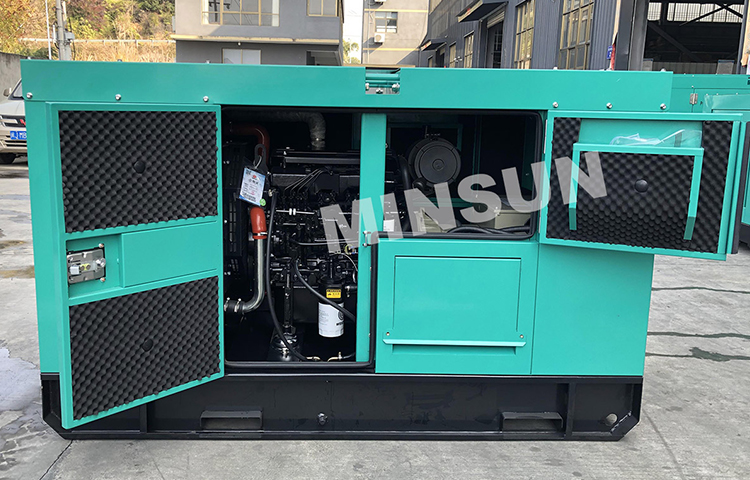

Engine and Alternator Assembly
Ventilation and Exhaust System Design
Base Frame and Mounting Details
Review the comprehensive technical specifications of the 16kW 20kVA Weichai WP2.3D25E200 Diesel Generator below. This detailed data sheet covers the overall genset performance, engine capabilities, and alternator parameters. These specifications are provided to help you verify equipment compatibility with your power demands, supporting informed selection for stable and efficient operation.
GENSET DATA | ||||
Genset Model | GF-WC20 | |||
Engine Model | WP2.3D25E200 | |||
Alternator Model | SY-A 184E | |||
Speeding Mode | Electronic | |||
Phase | 3 | |||
Control System | Digital | |||
Starting Voltage | 12V | |||
Frequancy | 50HZ | |||
Rated Speed[r.p.m] | 1500 | |||
Fuel | 100%Load | 5.9 | ||
75%Load | —— | |||
50%Load | —— | |||
ENGINE DATA | |||||
Output power | 25KW | ||||
Number of Cylinders | 4 | ||||
Type | 4-stroke, In line | ||||
Aspiration | Natural | ||||
Bore | 89mm | ||||
Stroke | 92mm | ||||
Displacement | 2.289L | ||||
Speed | 1500r/min | ||||
Start motor | 12v | ||||
Lube oil capacity | 8L | ||||
Cooling system | water cooling cycle | ||||
Filter system | oil, fuel and air filters | ||||
ALTERNATOR DATA | ||||
Output power | 16kw | |||
Phase | 3 | |||
Power factor | 0.8 | |||
Number of poles | 4 | |||
Winding | Star winding | |||
Line | 12 | |||
Insulation class | class H | |||
Protection | IP23 | |||
Excitation system | Self excitation, brushless | |||
Bearing | single | |||
Coating type | Vacuum dipping | |||
Voltage regulator | A.V.R | |||
Connection mode | Flexible disc coupling | |||
Ambient temperature | 40℃ | |||
Voltage regulation rate | <=±1% | |||
OPTION | |||||||||
Genset | Genset Type | Engine | Controller | ||||||
ATS | Open/silent/Trailer Type | water heater | Smartgen/Lixise/Deep Sea | ||||||
Socket |
| Oil heater |
| ||||||
The optional configurations listed above—including ATS integration, specialized heating modules, and premium controllers—provide the flexibility to customize the generator for various deployment environments. Depending on project requirements, these options can help optimize the unit for open, silent, or trailer-mounted applications.
As a dedicated manufacturer of dependable power generation solutions, we focus on delivering high-performance diesel generators designed for diverse industrial and commercial applications. Our commitment to continuous improvement and technological innovation ensures that every unit, including our 16kW Weichai diesel generators, meets rigorous standards for stability, durability, and operational efficiency. We strive to be a trusted partner for global procurement needs, providing professional manufacturing capabilities and reliable power equipment.
Our modern manufacturing facility is equipped with advanced production lines and comprehensive testing systems. From component assembly to final performance evaluations, every step of the production process is strictly monitored under standard quality control protocols. This systematic approach allows us to maintain consistent manufacturing quality and steady production capacity, ensuring that our generators can perform reliably under demanding working conditions and meet the specific delivery schedules of our clients.
Quality and safety are the core foundations of our manufacturing philosophy. Our company holds relevant industry certifications that validate our adherence to strict manufacturing and safety standards. Through years of industry experience, we have built a strong corporate reputation based on technical expertise, responsive service, and a deep understanding of power generation requirements. We are dedicated to reducing procurement risks for our partners by supplying certified, well-tested, and fully supported generator sets.
