GF-W25
| Quantity: | |
|---|---|
Visual Display of the 20kW 25kVA Weichai WP2.3D25E200 Diesel Generator
The following gallery highlights the overall exterior design, structural integrity, and component layout of the generator set. Designed for practical application and reliable performance, the unit features a robust industrial construction suitable for various operational environments.

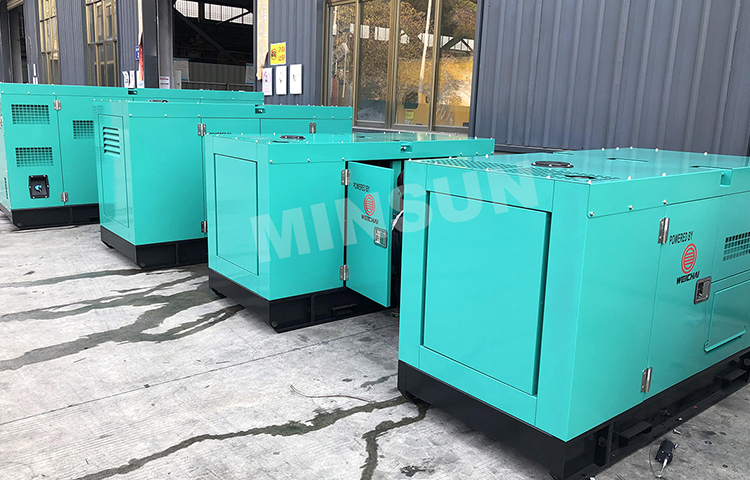

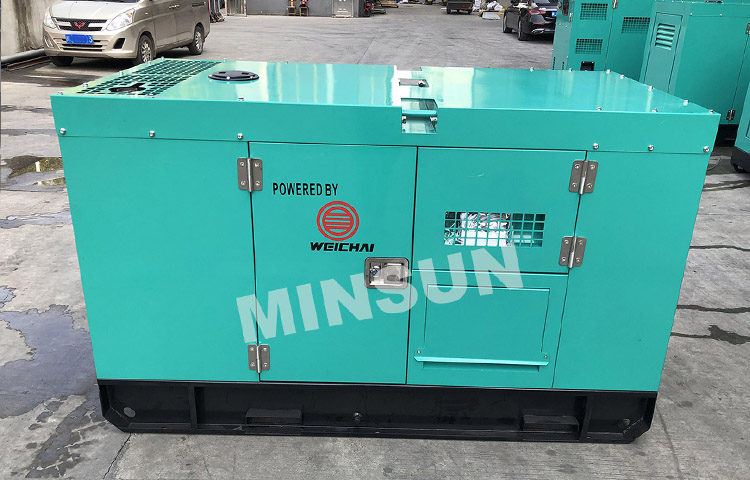

Overall exterior view of the 20kW Weichai diesel generator
Side view showcasing the compact structural design

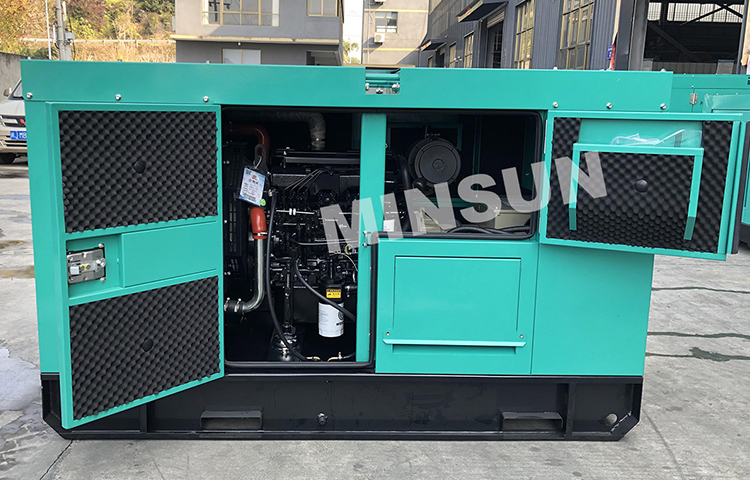

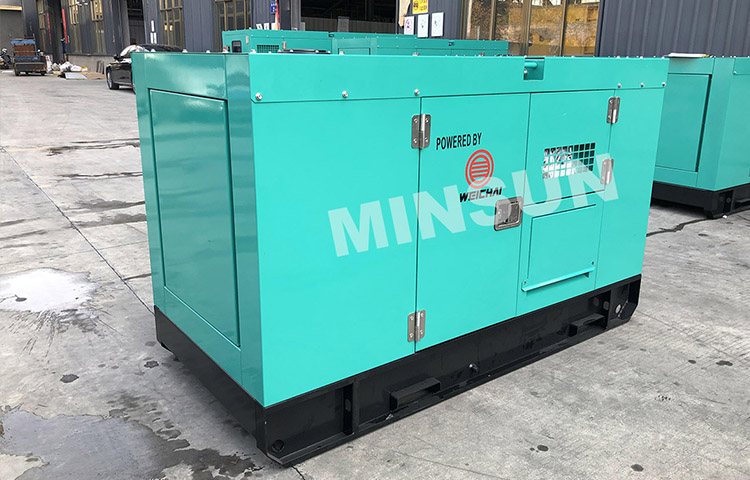

Detailed view of the internal components and layout
Close-up of the robust enclosure and mounting structure

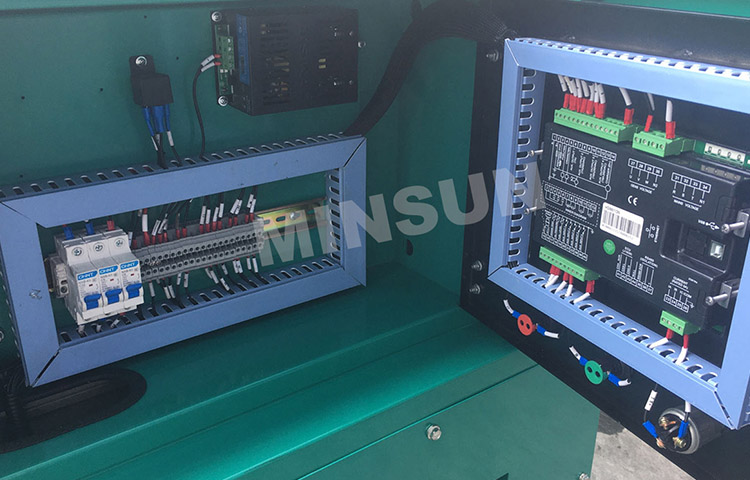

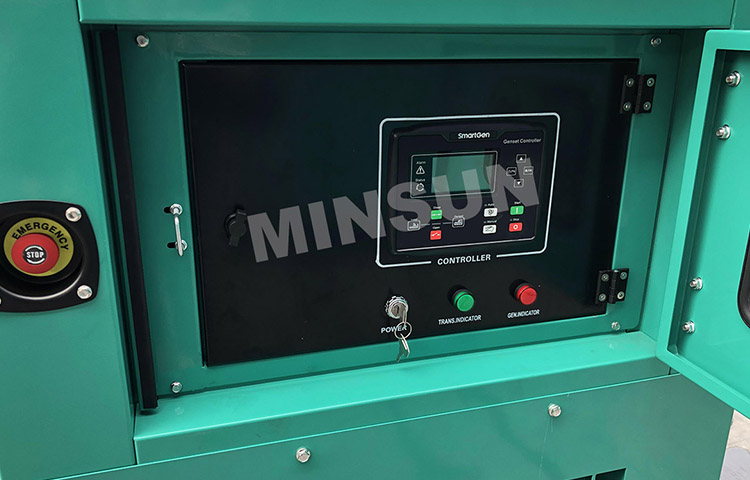

Control panel and operational interface display

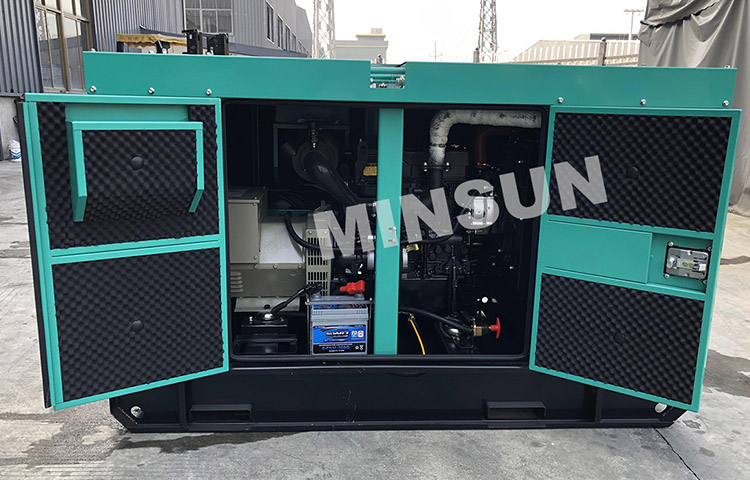

Weichai WP2.3D25E200 engine integration details
Cooling and exhaust system structural design
Complete assembly ready for deployment
Review the comprehensive technical specifications of the 20kW 25kVA Weichai WP2.3D25E200 Diesel Generator below. Designed for reliable power supply, this genset integrates a high-performance Weichai engine with a durable alternator, ensuring stable operation for various industrial and commercial applications. The detailed data sheets provide essential information for your project sizing, equipment selection, and facility integration.
GENSET DATA | ||||
Genset Model | GF-WC25 | |||
Engine Model | WP2.3D25E200 | |||
Alternator Model | SY-A 184E | |||
Speed Governing Mode | Electronic | |||
Phase | 3 | |||
Control System | Digital | |||
Starting Voltage | 12V | |||
Frequency | 50HZ | |||
Rated Speed [r.p.m] | 1500 | |||
Fuel Consumption | 100% Load | 5.9 | ||
75% Load | —— | |||
50% Load | —— | |||
ENGINE DATA | |||||
Output Power | 25KW | ||||
Number of Cylinders | 4 | ||||
Type | 4-stroke, In line | ||||
Aspiration | Natural | ||||
Bore | 89mm | ||||
Stroke | 92mm | ||||
Displacement | 2.289L | ||||
Speed | 1500r/min | ||||
Starter Motor | 12v | ||||
Lube Oil Capacity | 8L | ||||
Cooling System | water cooling cycle | ||||
Filter System | oil, fuel and air filters | ||||
ALTERNATOR DATA | ||||
Output Power | 20kw | |||
Phase | 3 | |||
Power Factor | 0.8 | |||
Number of Poles | 4 | |||
Winding | Star winding | |||
Line | 12 | |||
Insulation Class | class H | |||
Protection | IP23 | |||
Excitation System | Self excitation, brushless | |||
Bearing | single | |||
Coating Type | Vacuum dipping | |||
Voltage Regulator | A.V.R | |||
Connection Mode | Flexible disc coupling | |||
Ambient Temperature | 40℃ | |||
Voltage Regulation Rate | <=±1% | |||
OPTION | |||||||||
Genset | Genset Type | Engine | Controller | ||||||
ATS | Open/silent/Trailer Type | water heater | Smartgen/Lixise/Deep Sea | ||||||
Socket | Oil heater | ||||||||

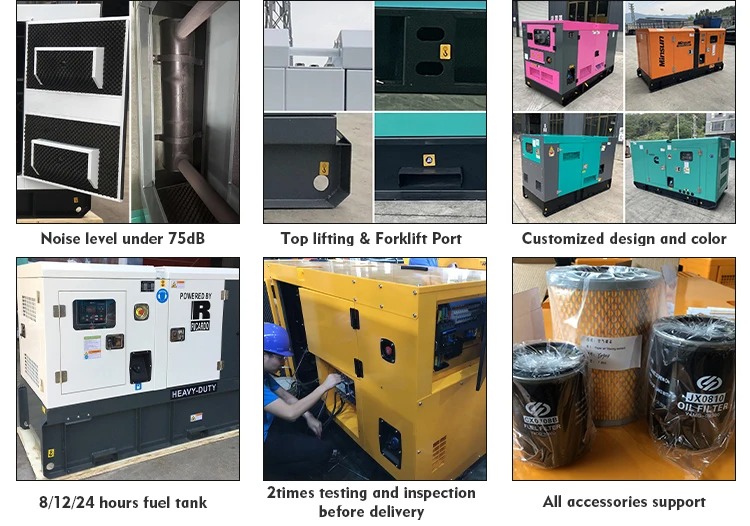

Depending on your specific operating environment and project requirements, various optional configurations are available, including ATS (Automatic Transfer Switch) for seamless power transitions, silent canopies for noise reduction, trailers for mobility, and specialized heaters for cold climates. These options help customize the generator set for optimal performance and ease of maintenance in diverse conditions.
As a dedicated manufacturer of power generation equipment, we focus on delivering reliable energy solutions for diverse industrial and commercial applications. Our production facility is equipped with standardized assembly lines and rigorous testing centers to ensure every diesel generator set meets strict performance criteria before reaching your site.
Our expansive factory encompasses dedicated zones for component processing, engine assembly, and final configuration. This systematic approach allows us to maintain consistent production capacity and fulfill bulk procurement requirements efficiently.
Quality assurance is integrated into every step of our manufacturing process. From raw material inspection to full-load operational testing, we implement strict quality management protocols to minimize procurement risks and ensure long-term equipment stability.
Supported by an experienced technical engineering team and a responsive service network, we provide comprehensive support tailored to your project needs. Our established qualifications and industry certifications serve as a testament to our commitment to reliable manufacturing and continuous customer service.
